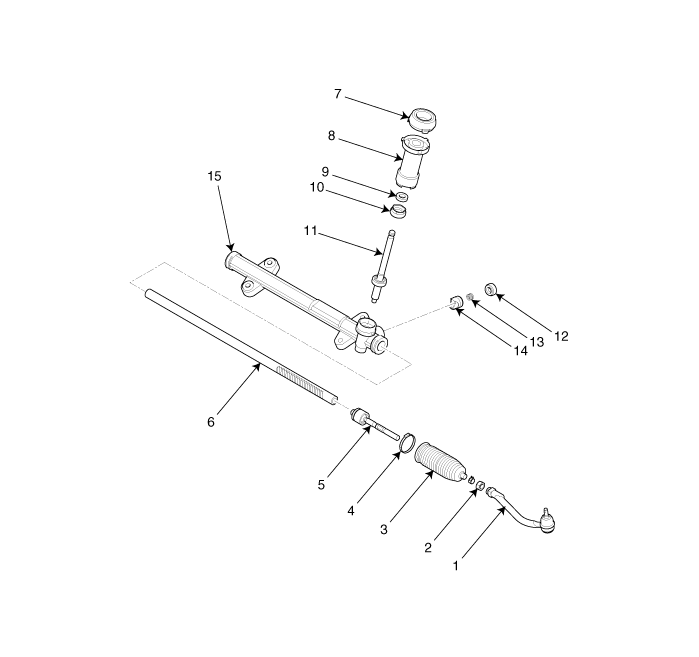

| Components |
| 1. Tie-rod end 2. Lock nut 3. Bellows clip 4. Bellows 5. Tie rod | 6. Rack bar 7. Dust packing 8. Dust cap 9. Oil seal 10. Pinion plug | 11. Pinion assembly 12. Yoke plug 13. Yoke spring 14. Support yoke assembly 15. Rack housing |
Steering Column and Shaft Repair procedures
Replacement
1.
Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
2.
Turn the steering wheel so that the front wheels can face straight ahead.
3 ...
Steering Gear box Repair procedures
Replacement
1.
Remove the front wheel & tire (A).
Tightening torque :
88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)
•
Be careful not to damage to the hub ...
