Hyundai Azera: Thermostat Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Mechanical System / Cooling System / Thermostat Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Mechanical System / Cooling System / Thermostat Components and Components Location

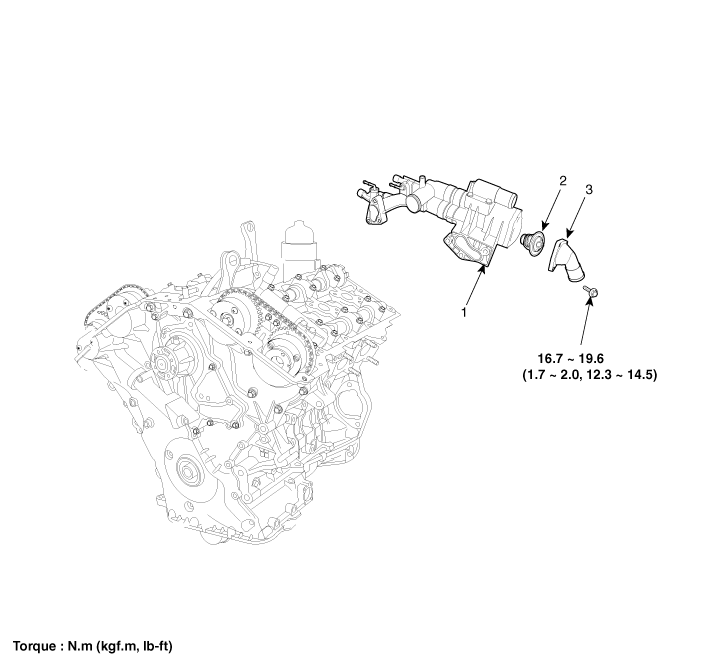

| Components |
| 1. Water temperature control assembly 2. Thermostat 3. Water inlet fitting |
