| Components |
| [LH] |

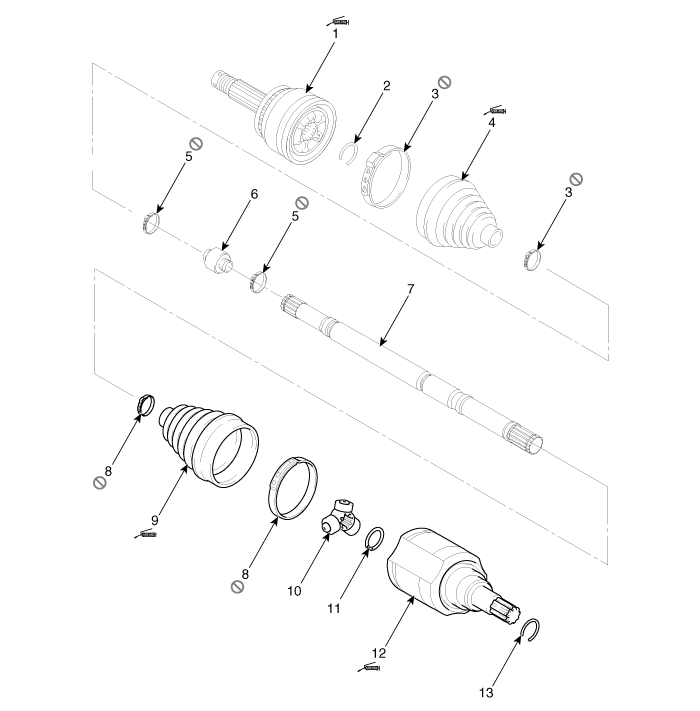

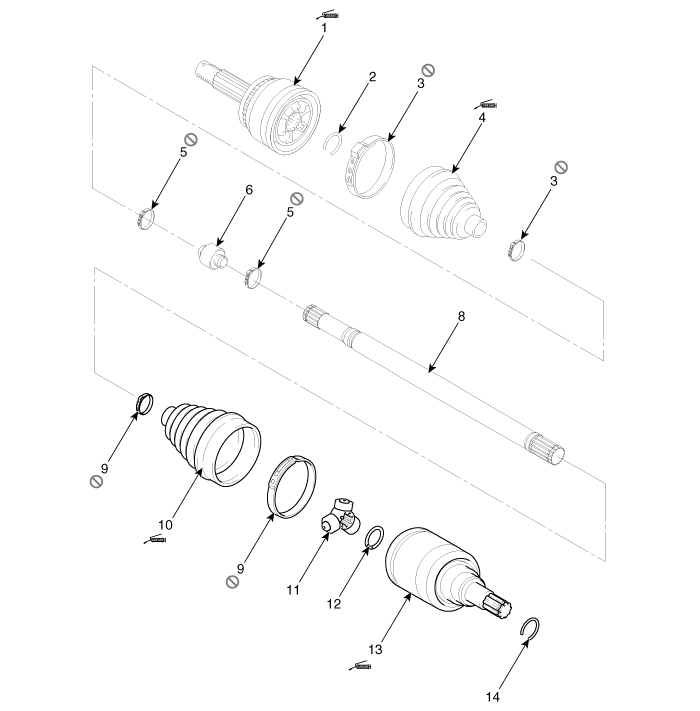

| 1. BJ assembly 2. Circlip 3. BJ boot band 4. BJ boot | 5. Dynamic damper band 6. Dynamic damper 7. Shaft 8. TJ boot band | 9. TJ boot 10. Spider assembly 11. Snap ring 12. TJ case | 13. Circlip |
| [RH] |
| 1. BJ assembly 2. Circlip 3. BJ boot band 4. BJ boot | 5. Dynamic damper band 6. Dynamic damper 7. Shaft 8. TJ boot band | 9. TJ boot 10. Spider assembly 11. Snap ring 12. TJ case | 13. Circlip |
Front Driveshaft Repair procedures
Replacement
1.
Loosen the wheel lug nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.
Remove the front wheel and tire (A) from front hub.
Tightening torque:
88. ...
TJ Joint Repair procedures
Replacement
•
Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
•
The boot band should be replaced with a ne ...
