Replacement

•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
•
Put on gloves to protect your hands.
1.
Remove the trunk trim.
2.
Installation is the reverse of removal.

•
Replace any damaged clips.

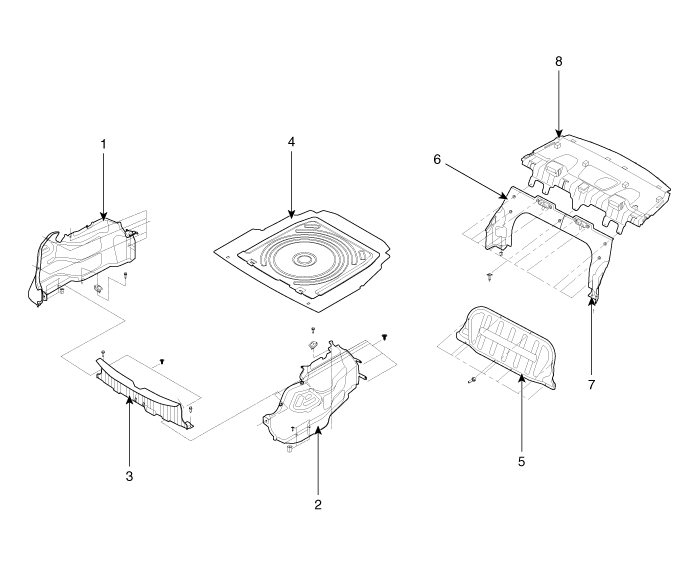

1. Luggage side trim [LH]
2. Luggage side trim [RH]
3. Rear transverse trim
4. Luggage covering complete
5. Luggage partition panel
6. Luggage partition side trim [RH]
7. Luggage partition side trim [LH]
8. Package tray trim
