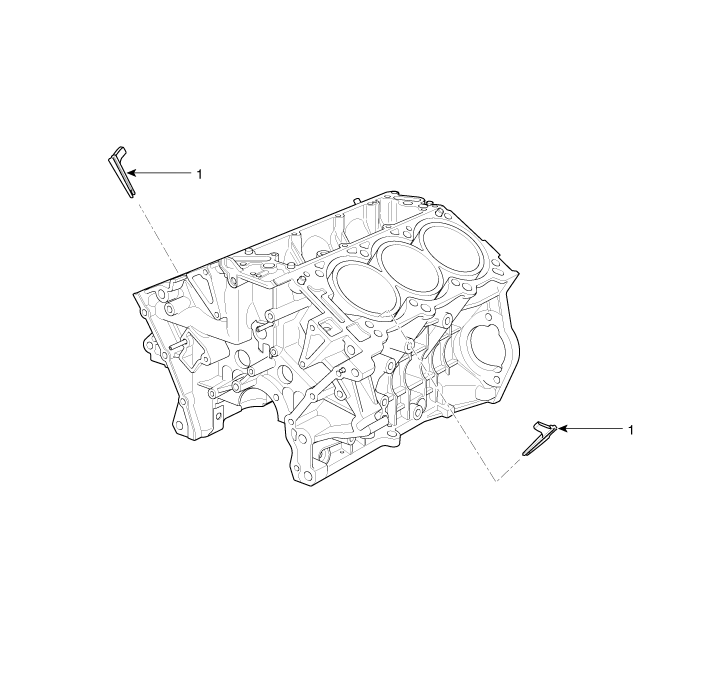

Hyundai Azera: Water Jacket Seperator Components and Components Location

Cylinder Block

...

Water Jacket Seperator Repair procedures

Removal 1. Remove the LH/RH cylinder head assembly and gasket. (Refer to Cylinder Head Assembly - "Cylinder Head") 2. Remove the water jacket seperator (A). Installation 1. Install the ...
