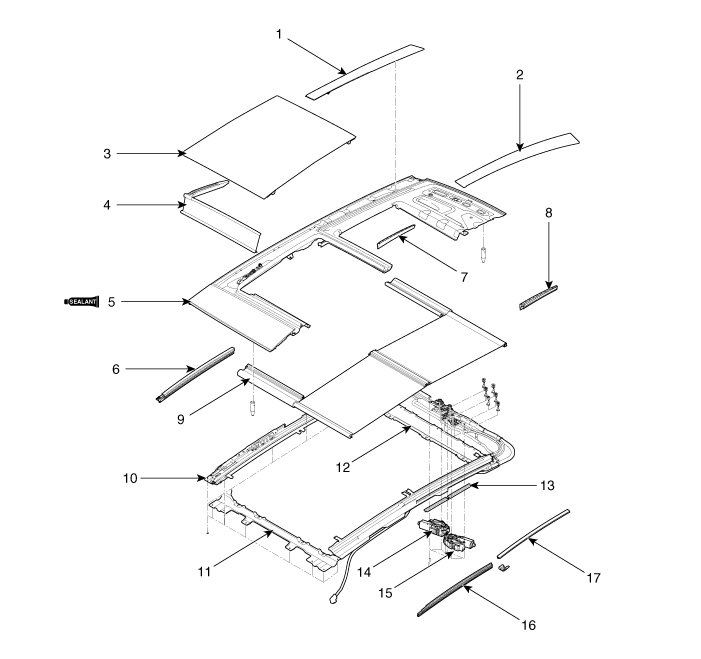

| Components (1) |
| 1. Roof side molding [RH] 2. Roof side molding [LH] 3. Movable glass assembly 4. Wind deflector assembly 5. Panoramaroof panel assembly 6. Folding cover [RH] | 7. Decoration cover [RH] 8. Decoration cover [LH] 9. Roller blind assembly 10. Mechanism rail assembly 11. Front roller blind lower support 12. Rear roller blind lower support | 13. Tape 14. Movable glass motor assembly 15. Roller blind motor assembly 16. Folding cover [LH] 17. Folding slide |

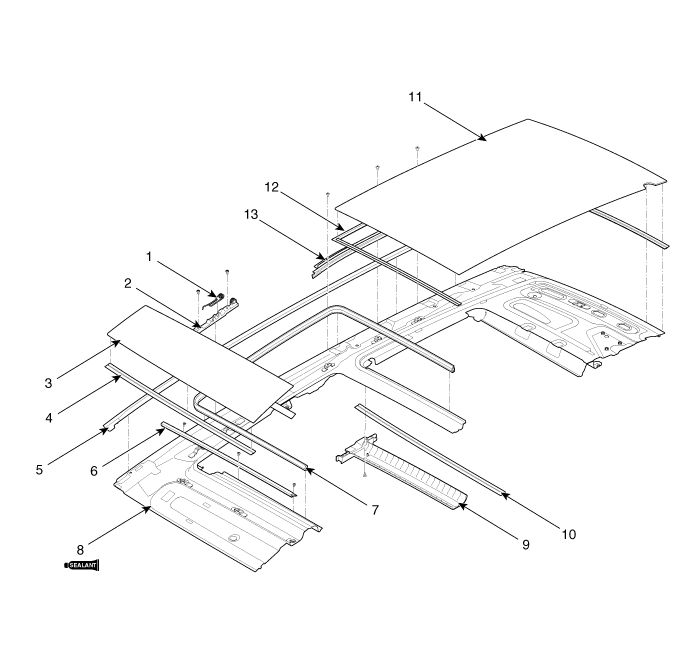

| Components (2) |
| 1. Wind deflector spring assembly 2. Wind deflector link assembly 3. Front glass panel assembly 4. Front glass cover seal 5. Rear glass cover seal 6. Wind deflector fixing plate 7. Weatherstrip | 8. Panoramaroof panel assembly 9. Center cover 10. Acoustic seal 11. Rear glass panel assembly 12. Rear glass cover seal 13. Rear rail |
Panoramaroof
...
Repair procedures
Adjustment
Inspect Glass Alignment
1.
Check for abnormal noise or bending during operation.
2.
With the sunroof fully closed, check for water leakage.
3.
The roof panel (B) should be even ...
