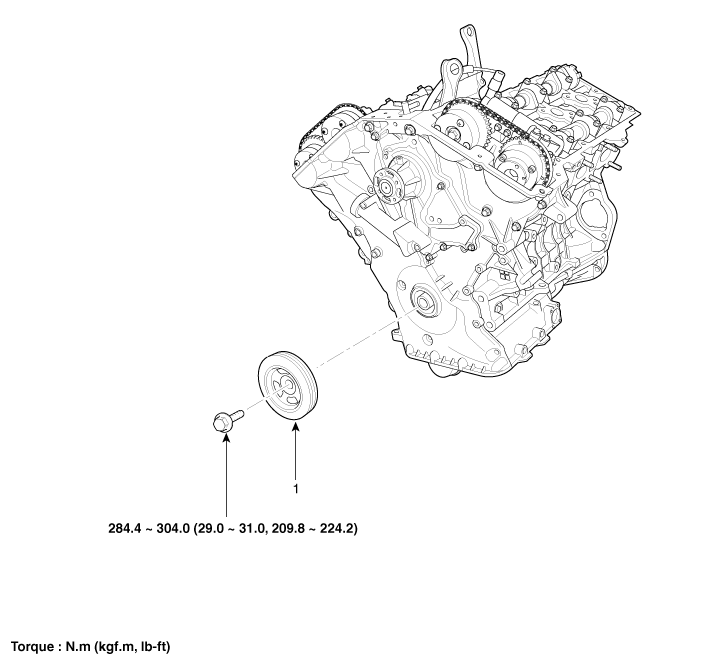

Hyundai Azera: Crankshaft Damper Pulley Components and Components Location

Drive Belt Tensioner Repair procedures

Removal and Installation 1. Remove the drive belt idler. (Refer to Timing System - "Idler") 2. Remove the drive belt auto tensioner (A). Tightening torque Bolt (B) : 81.4 ~ 85.3N.m (8.3 ...

Crankshaft Damper Pulley Repair procedures

Removal and Installation     • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wiring connectors carefully while holding the conn ...
