| Components |

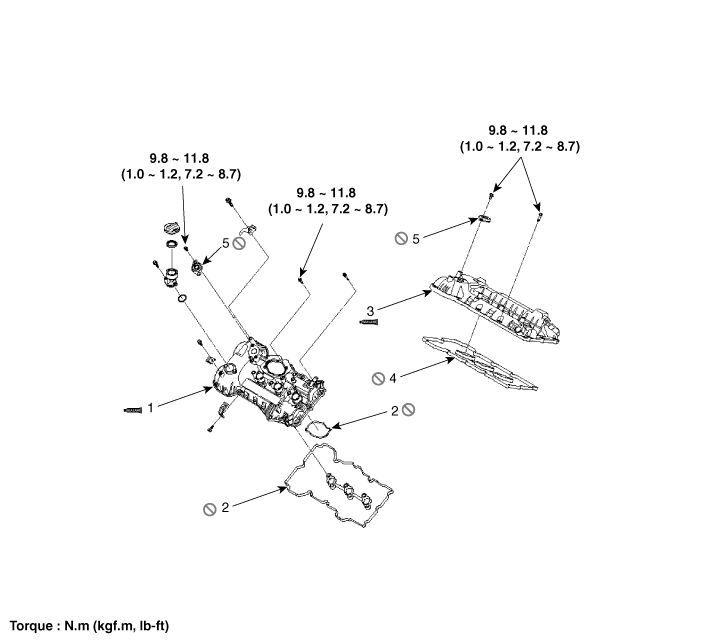

| 1. LH cylinder head cover 2. LH cylinder head cover gasket 3. RH cylinder head cover | 4. RH cylinder head cover gasket 5. Exhaust CVVT OCV cap |
Cylinder Head Cover Repair procedures
Removal
[LH]
1.
Remove the Intake manifold.
(Refer to Intake And Exhaust System - "Intake Manifold")
2.
Remove the high pressure fuel pump.
(Refer to Fuel System - "High Pressure Fuel Pu ...
