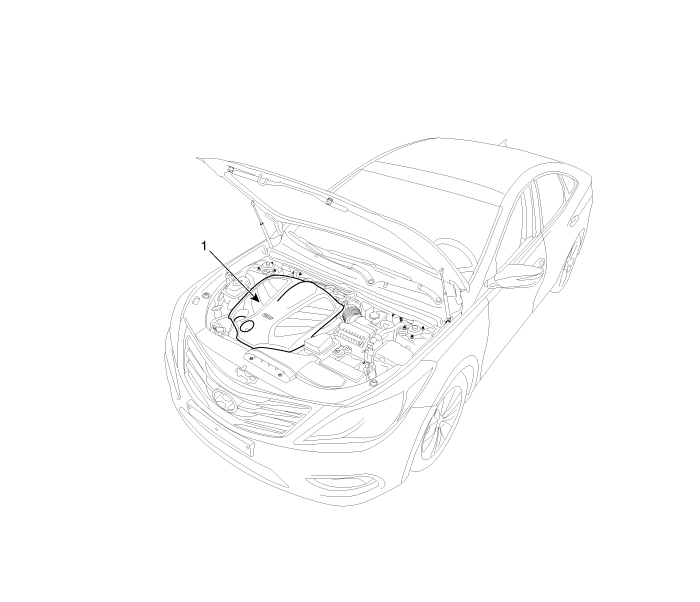

| Components Location |
| 1. Engine cover |
Engine Cover Repair procedures
Removal and Installation
1.
Remove the engine cover (A).
•
Lift up the lower end of engine cover, then left and right alternately.
•
When installing, confirm that t ...
