Hyundai Azera: Engine number

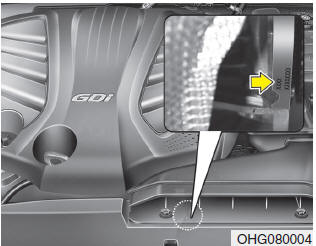

The engine number is stamped on the engine block as shown in the drawing.
Tire specification and pressure label
The tires supplied on your new vehicle are chosen to provide the best performance
for normal driving.
The tire label located on the driver's side center pillar gives the tire pressures
recomm ...
Refrigerant label (If equipped)
The refrigerant label is located on the underside of the hood.
The label contains the following information:
Type of refrigerant
Amount of refrigerant
...
