Hyundai Azera: Refrigerant label (If equipped)
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Owners Manual / Specifications, Consumer information and Reporting safety defects / Refrigerant label (If equipped)

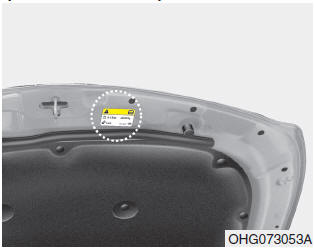

The refrigerant label is located on the underside of the hood.
The label contains the following information:
- Type of refrigerant
- Amount of refrigerant
