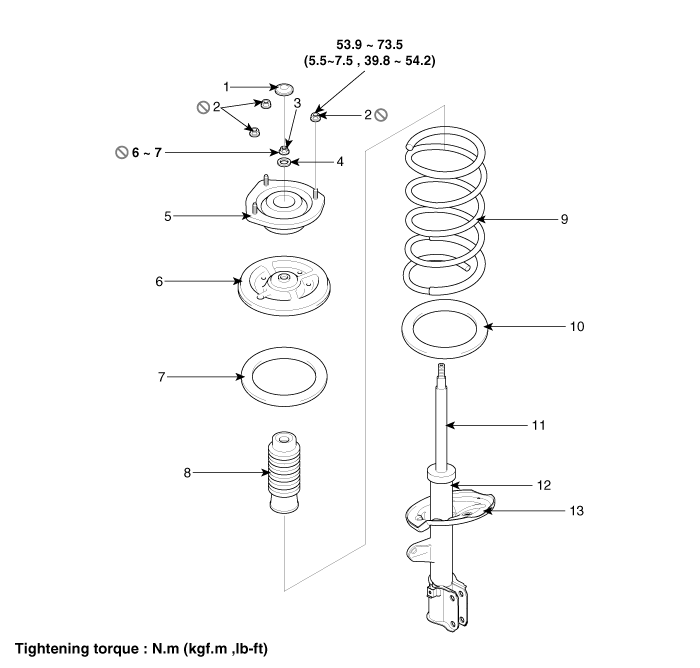

| Components |
| 1. Dust cover 2. Upper locking nut 3. Self locking nut 4. Space 5. Insulator 6. Spring upper seat 7. Spring upper pad | 8. Strut dust cover & Bumper rubber 9. Coil spring 10. Spring lower pad 11. Piston rod 12. Strut assembly 13. Spring lower seat |
Components and Components Location
Components
1. Sub frame2. Lower arm3. Front disk4. Drive shaft5. Steering gearbox6. Front stabilizer bar7. Front strut assembly8. Front stabilizer bar link
...
Front Strut Assembly Repair procedures
Replacement
1.
Remove the front wheel & tire (A).
Tightening torque:
88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)
Be careful not to damage to the hub bolts ...
