Hyundai Azera: Outside rearview mirror - Mirrors - Features of your vehicle - Hyundai Azera 2011-2019 Owners ManualHyundai Azera: Outside rearview mirror

Be sure to adjust mirror angles before driving.

Your vehicle is equipped with both left-hand and right-hand outside rearview mirrors. The mirrors can be adjusted remotely with the remote switch. The mirror heads can be folded back to prevent damage during an automatic car wash or when passing through a narrow street.

The right outside rearview mirror is convex. Objects seen in the mirror are closer than they appear. Use your interior rearview mirror or direct observation to determine the actual distance of following vehicles when changing lanes.

CAUTION - Rearview mirror

Do not scrape ice off the mirror face; this may damage the surface of the glass. If ice should restrict movement of the mirror, do not force the mirror for adjustment. To remove ice, use a deicer spray, or a sponge or soft cloth with very warm water.

WARNING - Mirror adjustment

Do not adjust or fold the outside rearview mirrors while the vehicle is moving. This could result in loss of control, and an accident which could cause death, serious injury or property damage.

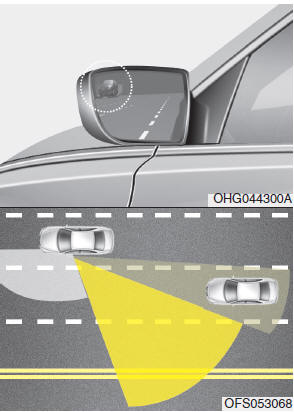

Blind zone mirror (if equipped)

The blind zone mirror (BZM) is supplemental mirror to reduce a driver's blind


The blind zone mirror (BZM) is supplemental mirror to reduce a driver's blind zone that will show the rear side territory of your vehicle. The blind zone mirror is equipped with the left-hand outside rearview mirror.

WARNING

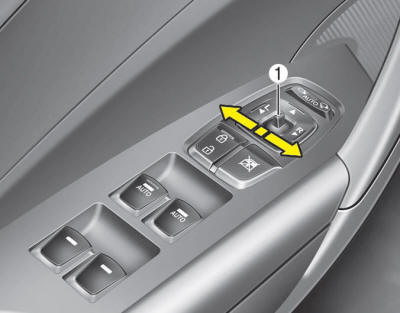

Adjusting the outside rearview mirror

The electric remote control mirror switch allows you to adjust the position of


The electric remote control mirror switch allows you to adjust the position of the left and right outside rearview mirrors.

To adjust the position of the mirrors:

1.Place the ignition switch in the ACC position.
2.Move the lever(1) to R (right) or L (left) to select the right side mirror or the left side mirror.
3.Press a corresponding point on the mirror adjustment control to position the selected mirror up, down, left or right.
4.After the adjustment, position the lever in the center to prevent inadvertent movement.

CAUTION - Outside mirror

Folding/unfolding the outside rearview mirror

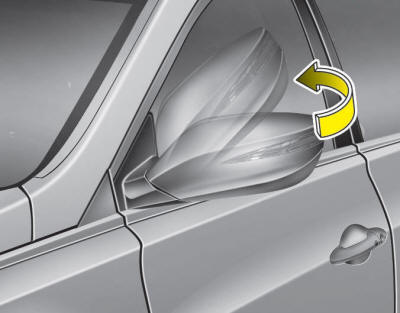

Manual type


Manual type

To fold the outside rearview mirror, grasp the housing of the mirror and then fold it toward the rear of the vehicle.

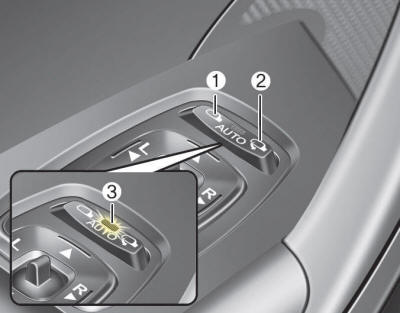

Electric type

The outside rearview mirror can be folded or unfolded by pressing the switch


The outside rearview mirror can be folded or unfolded by pressing the switch as below.

Left (1) :

The mirror will unfold.

Right (2) :

The mirror will fold.

Center (AUTO, 3) :

The mirror will fold or unfold automatically as follows:

- The mirror will fold or unfold when the door is locked or unlocked by the smart key.
- The mirror will fold or unfold when the door is locked or unlocked by the button on the outside door handle.
- The mirror will unfold when you approach the vehicle (all doors closed and locked) with a smart key in possession. (if equipped)

CAUTION

The electric type outside rearview mirror operates even though the ENGINE START/STOP button is in the OFF position. However, to prevent unnecessary battery discharge, do not adjust the mirrors longer than necessary while the engine is not running.

CAUTION

In case it is an electric type outside rearview mirror, dont fold it by hand. It could cause motor failure.

Erasing HomeLink buttons
Individual buttons cannot be erased. However, to erase all three programmed buttons: 1. Press and hold the two outer HomeLink buttons until the indicator light begins to flash after 10 seconds. 2. ...

Reverse parking aid function (if equipped)
While the vehicle is moving rearward, the outside rearview mirror(s) will move downward to aid reverse parking. According to the position of the outside rearview mirror switch (1), the outside r ...
