| Inspection |
| 1. |
Remove the front door quadrant delta cover.
|
| 2. |
Disconnect the power door mirror connector from the harness.
|
| 3. |

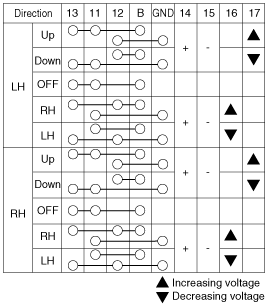

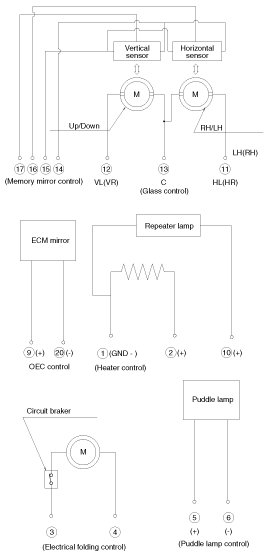

Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.
Mirror Heater Inspection
Puddle Lamp
ECM
Side Repeater Lamp
Folding Mirror
Memory Mirror Inspection
|
Power Out Side Mirror Switch Repair procedures
Inspection
1.
The DDM inputs can be checked using the GDS.
2.
To check the input value of door lock switch, select option "IPM".
3.
Select option "DDM (Driver Door Module)".
4.
Select ...
