| Inspection |
| 1. |
The DDM inputs can be checked using the GDS. |
| 2. |
To check the input value of door lock switch, select option "IPM". |
| 3. |
Select option "DDM (Driver Door Module)". |
| 4. |

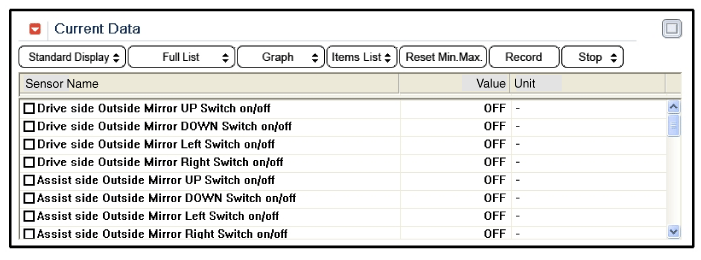

Select option "Input/Output monitoring".
|
| 5. |

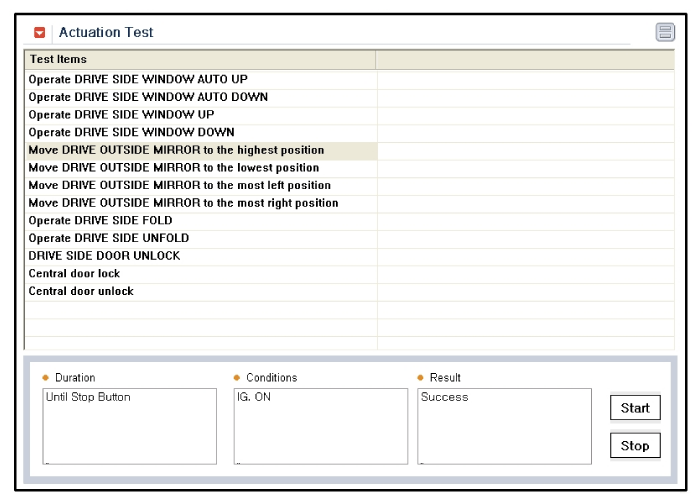

To check the input value of door lock switch in force mode, select option "ACTUATION TEST".
|
| Removal |
| 1. |
Disconnect the negative(-) battery terminal. |
| 2. |
Remove the front door trim panel.
|
| 3. |
Disconnect the power window switch module connector (A) from the wiring harness.
|
| 4. |
Remove the power window switch module (B) from the door trim after loosening the mounting screws. |
| Installation |
| 1. |
Install the power window switch module. |
| 2. |
Install the door trim panel after reconnecting the relevant connectors
|
Power Door Mirror Actuator Repair procedures
Inspection
1.
Remove the front door quadrant delta cover.
(Refer to Body - "Front Door Trim")
2.
Disconnect the power door mirror connector from the harness.
3.
Apply battery voltage to e ...
