Pressing the key will change the
operating mode in order of FM1 ➟ FM2 ➟ AM ➟ XM1 ➟ XM2 ➟ XM3.

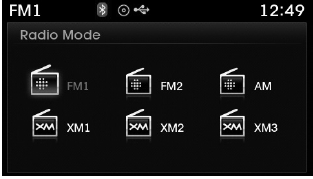

If [Mode Pop up] is turned on within
[Display], then pressing the
key will display the Radio mode pop
up screen.
Use ,
keys and
(
),
keys to move the focus. Press the
key to select.
✽ NOTICE
If the key is pressed with the
system power off, then the power will turn on and the most recently played broadcast
will be played.
