Hyundai Azera: Basic Mode Screen
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Owners Manual / Features of your vehicle / Radio mode / Basic Mode Screen

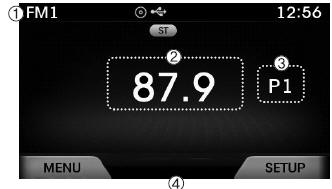

(1) Mode Display Displays currently operating mode.
(2) Frequency Displays the current frequency.
(3) Preset Displays currently playing preset number [1] ~ [6].
(4) MENU Displays Radio menus.

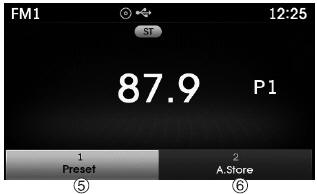

(5) Preset Display Displays saved presets.
(6) A.Store Automatically saves frequencies with superior reception to Preset buttons.
Radio mode
...
Switching to Radio Mode
Pressing the key will change the
operating mode in order of FM1 ➟ FM2 ➟ AM ➟ XM1 ➟ XM2 ➟ XM3.
If [Mode Pop up] is turned on within
[Display], then pressing ...
