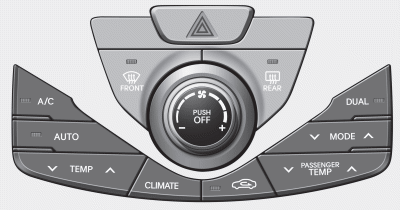

1. Front windshield defroster button
2. Fan speed control knob
3. OFF button
4. Rear window defroster button
5. Dual temperature control selection button
6. Mode selection button
7. Passenger's temperature control switch
8. Air intake control button
9. Climate information screen selection button
10. Driver’s temperature control switch
11. AUTO (automatic control) button
12. Air conditioning button
Catalytic Converter Description and Operation
Description
The catalytic converter of the gasoline engine is a three way
catalyst. It oxidizes carbon monoxide and hydrocarbons (HC), and
separates oxygen from the oxides of nitrogen (NOx). ...
Components and Components Location
Component Location
Components
1. Heater Case (LH)2. Heater Case (RH)3. Separator4. Heater Case (Lower)5. Drain Hose6. Insulation7.Shower Duct (RH)8. Temp Actuator(PA)9. Temp Door Cam10. Evapora ...
In-car sensor Repair procedures
Inspection
1.
Ignition "ON"
2.
Blow warm air into the in-car sensor air inlet. Measure sensor resistance between 2 and 4 terminals.
1. Incar Motor(-)2. Sensor GND3. -4. Incar Sensor (+)5. - ...
