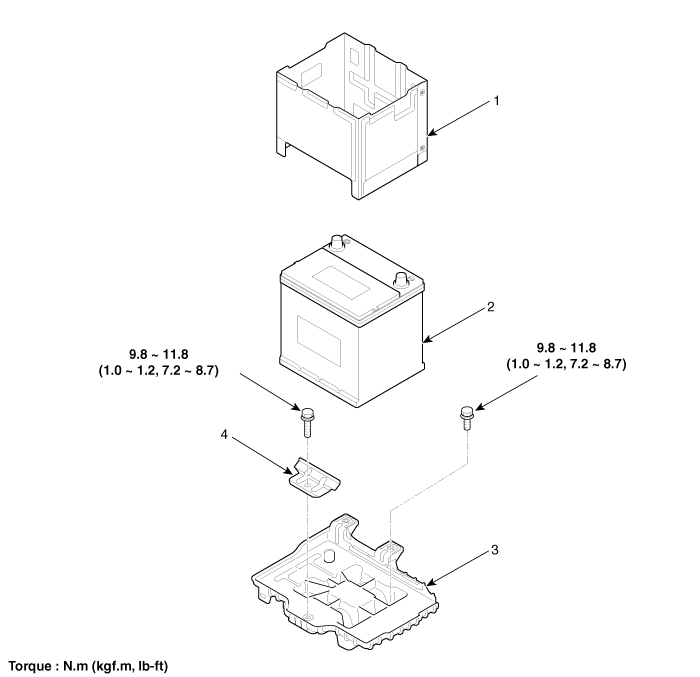

| Components |
| 1. Battery insulation pad 2. Battery | 3. Battery tray 4. Battery mounting bracket |
Battery Description and Operation
Description
1.
The maintenance-free battery is, as the name implies, totally maintenance free and has no removable battery cell caps.
2.
Water never needs to be added to the maintenance-free b ...
Battery Repair procedures
Removal and Installation
1.
Remove the air duct (B).
2.
Disconnect the negative terminal (A) from the battery.
Tightening torque :
3.9 ~ 5.9N.m (0.4 ~ 0.6kgf.m, 2.9 ~ 4.3lb-ft)
3.
D ...
