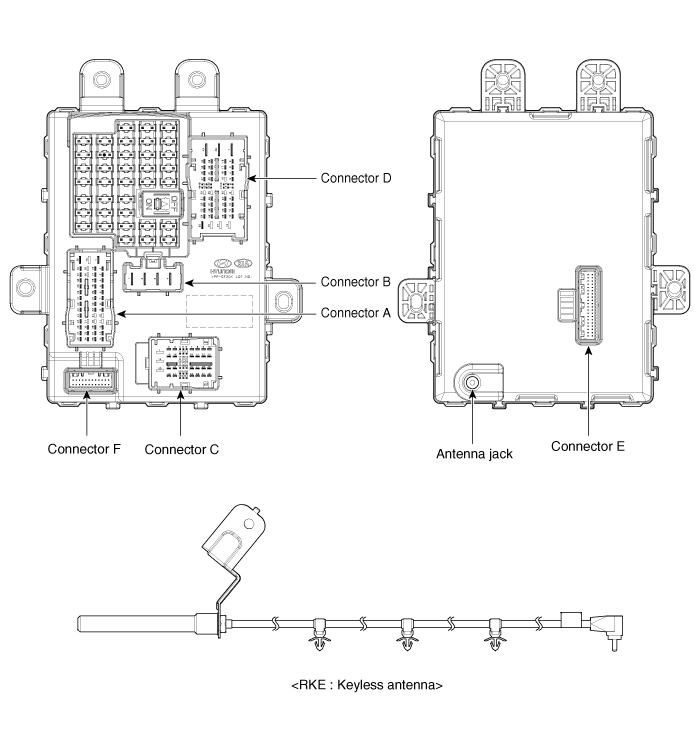

| Components |
Body Control Module (BCM) Specifications
Specifications
ItemsSpecificationsRated voltageDC 12VOperating voltageDC 9 ~ 16VOperating temperature-22°F~167°F(-30°C~ 75°C)Dark current5.5mA (SMK : 4.0mA)
...
Body Control Module (BCM) Schematic Diagrams

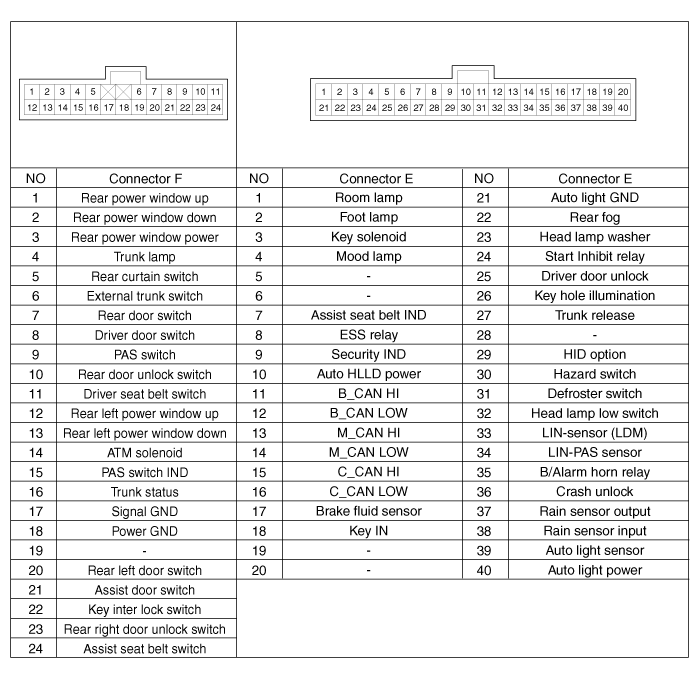

BCM Connector Terminals
BCM(IPM) Input Signal SPEC
Signal NameOn/Off JudgmentInput CharacteristicsInput acquisition VBAT Threshold VoltageL_DRLOpt(NA)On : 3.2V UnderOff : 4.2V OverPull up(ON ...
