| Components |

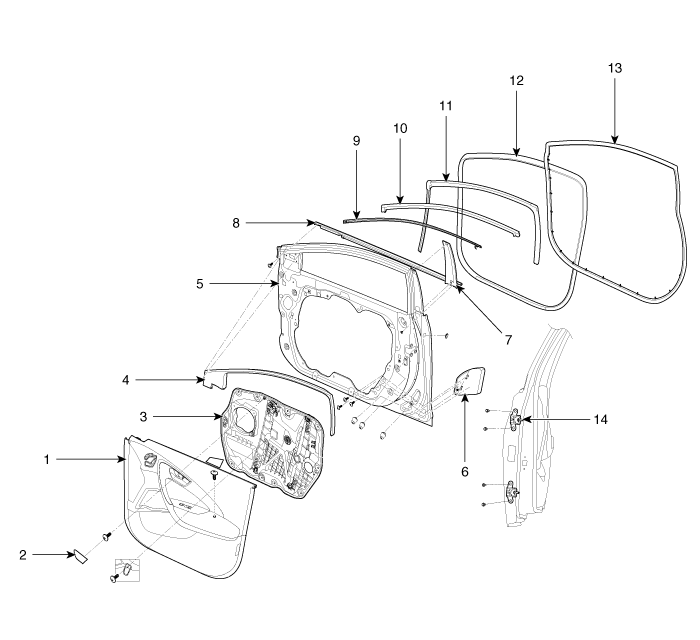

| 1. Front door trim 2. Front door inside handle cap 3. Front door module 4. Front frame inner cover 5. Front door panel 6. Front door side impact pad 7. Front door frame garnish | 8. Front door belt outer weatherstrip 9. Front door frame molding 10. Front door upper opening weatherstrip 11. Front door window glass run assembly 12. Front door body side weatherstrip 13. Front door side weatherstrip 14. Front door hinge |
Front Door
...
Repair procedures
Adjustment
Glass Adjustment
•
Check the glass run channel for damage or deterioration, and replace them if necessary.
1.
Remove the front door trim.
(Refer to Front Door - "Front Door T ...
