| Components |

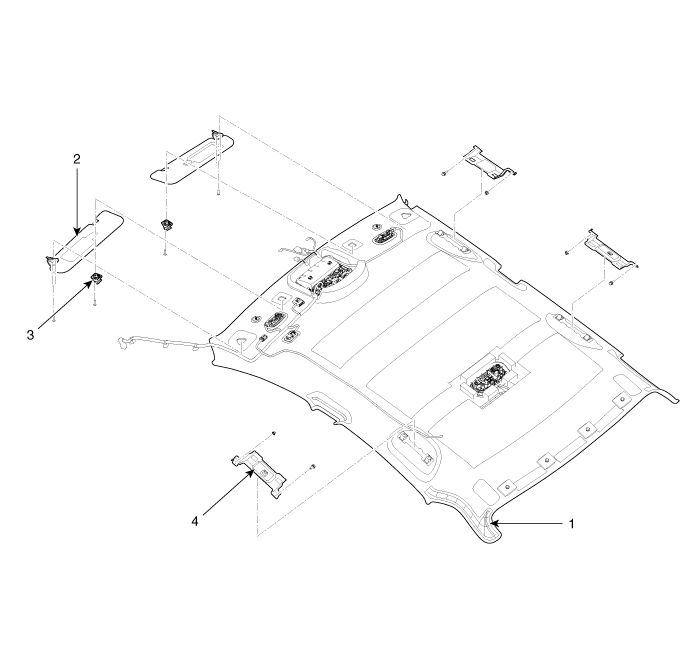

| [General Type] |
| 1. Roof trim 2. Sunvisor | 3. Retainer 4. Assist handle bracket |

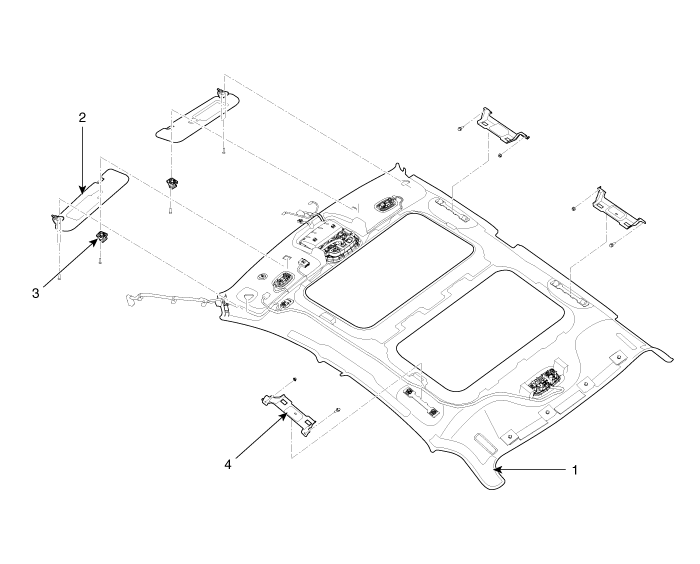

| [Panoramaroof Type] |
| 1. Roof trim 2. Sunvisor | 3. Retainer 4. Assist handle bracket |
Roof Trim
...
Sunvisor Components and Components Location
Component Location
1. Sunvisor2. Retainer
...
