Hyundai Azera: Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body (Interior and Exterior) / Windshield Glass / Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body (Interior and Exterior) / Windshield Glass / Components and Components Location

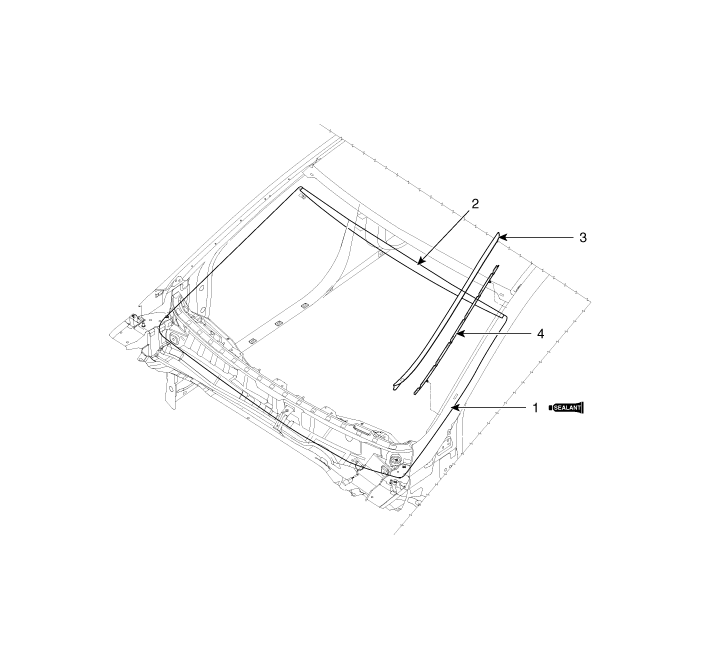

| Components |
| 1. Windshield glass 2. Windshield glass upper molding | 3. Windshield glass side molding 4. Windshield glass side mounting bracket |
Windshield Glass
...
Repair procedures
Replacement
[Removal]
•
Put on gloves to protect your hands.
•
Use seat covers to avoid damaging any surfaces.
1.
Remove the front pillar trim.
(Refer to ...
