Hyundai Azera: Components and Components Location
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Steering System / Steering wheel / Components and Components Location
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Steering System / Steering wheel / Components and Components Location

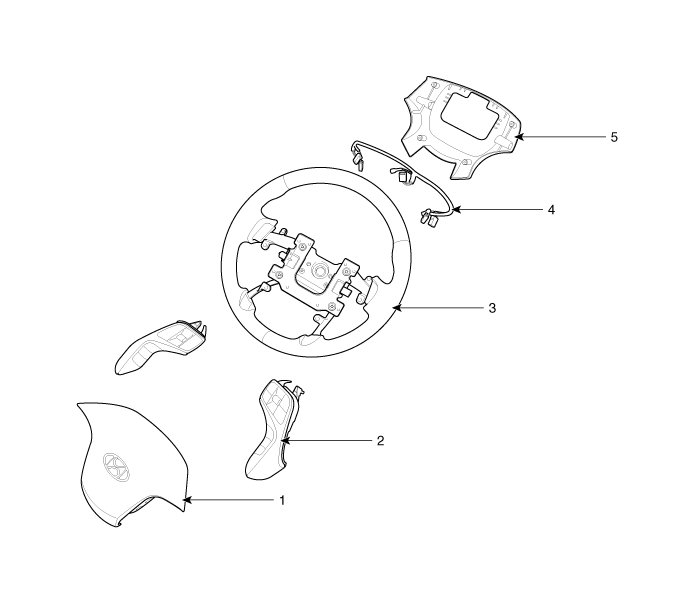

| Component |
| 1. Driver airbag (DAB) 2. Remote control assembly 3. Steering wheel body | 4. Wiring 5. Lower cover |
Steering wheel
...
Repair procedures
Removal
1.
Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
2.
Turn the steering wheel so that the front wheels can face straight ahead.
3.
R ...
