| Components |

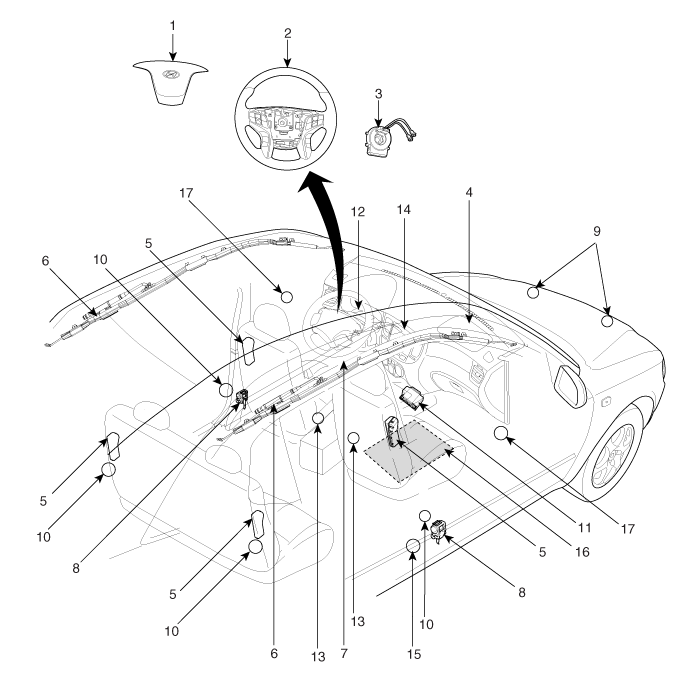

| 1. Driver Airbag (DAB) 2. Steering Wheel 3. Clock Spring 4. Passenger Airbag (PAB) 5. Side Airbag (SAB) 6. Curtain Airbag (CAB) 7. Knee Airbag (KAB) 8. Seat Belt Pretensioner (BPT) | 9. Front Impact Sensor (FIS) 10. Side Impact Sensor (SIS) 11. Supplemental Restraint System Control Module(SRSCM) 12. Airbag Warning Lamp 13. Seat Belt Buckle Switch (BS) 14. Telltale Lamp 15. Anchor Pretensioner (APT) 16. Passive Occupant Detection System (POPS-F) 17. Pressure Side Impact Sensor (P-SIS) |
| Components Location |
| Supplemental Restraint System Control Module (SRSCM) |

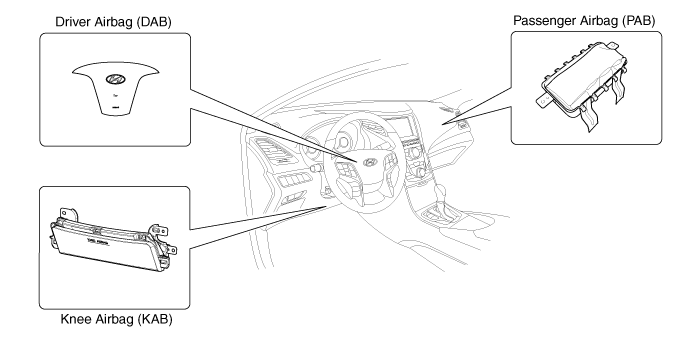

| Driver Airbag (DAB) / Passenger Airbag (PAB) / Knee Airbag (KAB) |
| Side Airbag (SAB) |

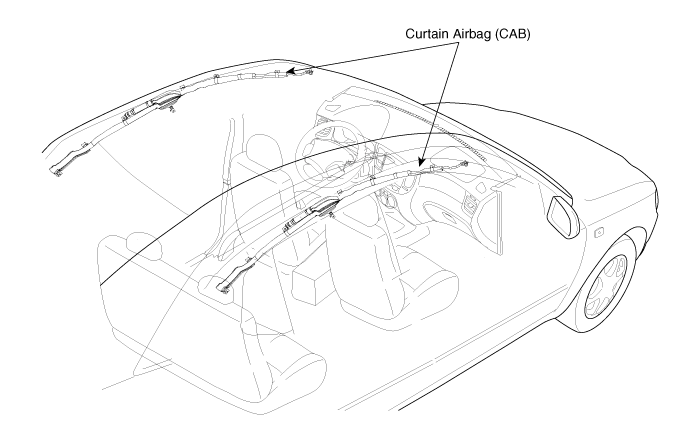

| Curtain Airbag (CAB) |

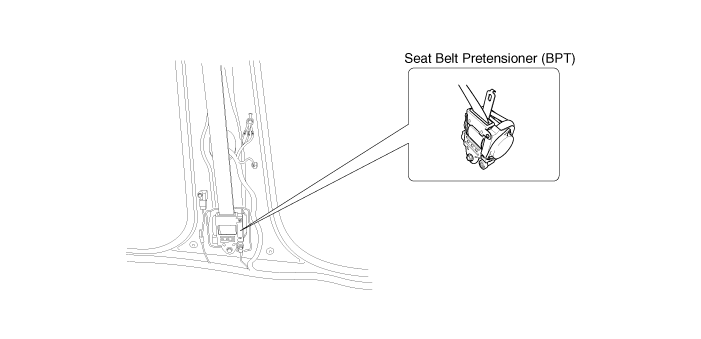

| Seat Belt Pretensioner (BPT) |
| Anchor Pretensioner (APT) |
| Front Impact Sensor (FIS) |

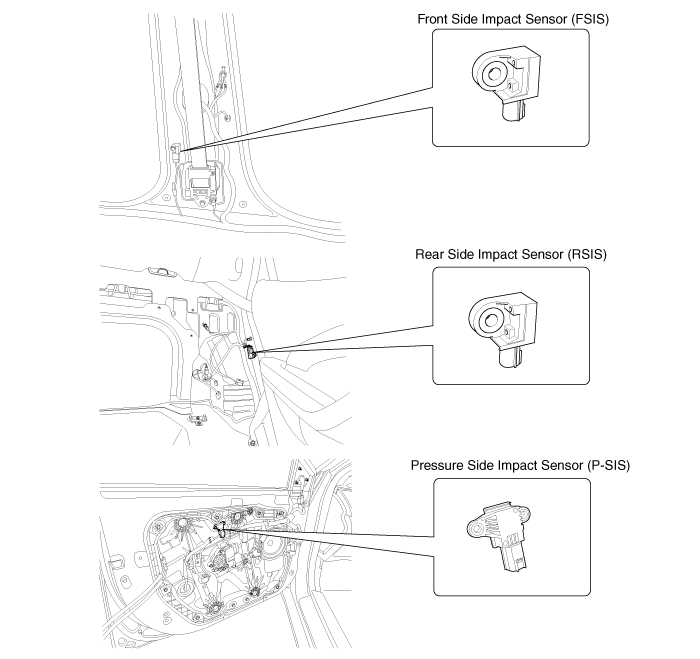

| Side Impact Sensor (SIS) / Pressure Side Impact Sensor (P-SIS) |
Repair procedures
Component Replacement After Deployment
Before doing any SRS repairs, use the GDS to check for DTCs.
Refer to the Diagnostic Trouble Code list for repairing of the related
...
SRSCM
...
