| Components |

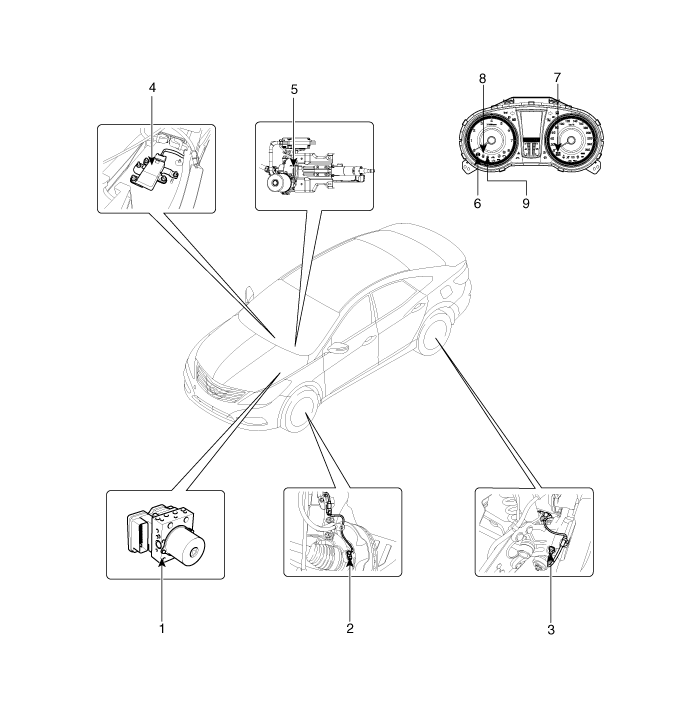

| 1. HECU module 2. Front wheel speed sensor 3. Rear wheel speed sensor 4. Yaw rate & Lateral G sensor 5. Steering angle sensor | 6. ABS Warning lamp 7. Parking brake/EBD warning lamp 8. ESC OFF lamp 9. ESC Function/Warning lamp |
Description and Operation
Description of ESC
Optimum driving safety now has a name : ESC, the Electronic Stability Control.
ESC recognizes critical driving conditions, such as panic
reactions in dangerous situations, a ...
