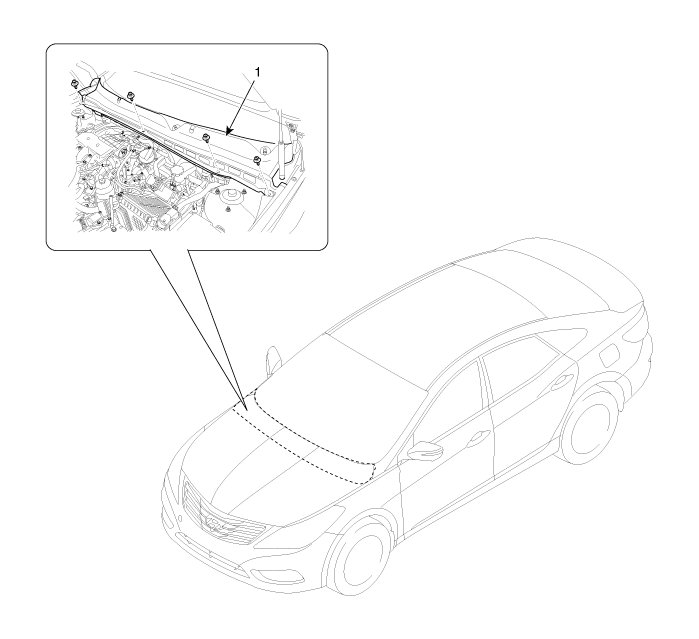

Hyundai Azera: Cowl Top Cover Components and Components Location

Cowl Top Cover

...

Cowl Top Cover Repair procedures

Replacement 1. Remove the cap (B) and remove the nuts, then remove the wiper arm (A). Tightening torque : 22.6~26.5 N.m(2.3~2.7 kgf.m, 16.6~19.5 lb-ft) 2. Disconnect the nozzle hose (B). ...
