Hyundai Azera: CVVT Oil Temperature Sensor (OTS) Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Hyundai Azera 2011-2026 Service ManualHyundai Azera: CVVT Oil Temperature Sensor (OTS) Schematic Diagrams

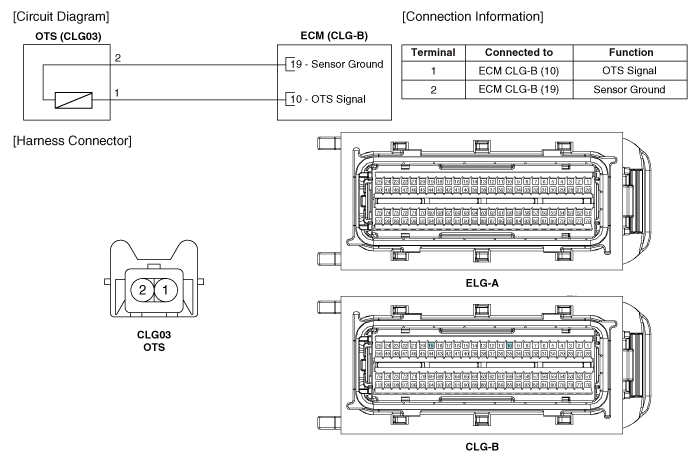

Circuit Diagram

CVVT Oil Temperature Sensor (OTS) Specifications
Specification TemperatureResistance (k?)°C°F-40-4052.15-20-416.520326.020682.45401041.11601400.54801760.29 ...

CVVT Oil Temperature Sensor (OTS) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the OTS connector. 3. Remove the OTS. (Refer to "Removal") 4. After immersing the thermistor of the sensor into engine coolant ...
