Hyundai Azera: Emergency towing - Towing - What to do in an emergency - Hyundai Azera 2011-2024 Owners ManualHyundai Azera: Emergency towing

If towing is necessary, we recommend you to have it done by an authorized HYUNDAI


If towing is necessary, we recommend you to have it done by an authorized HYUNDAI dealer or a commercial tow truck service.

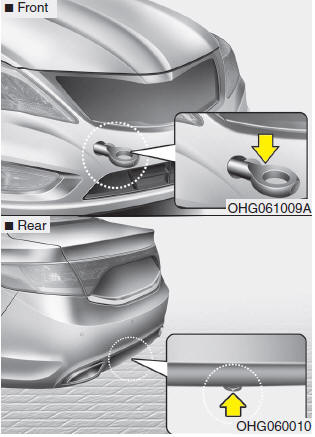

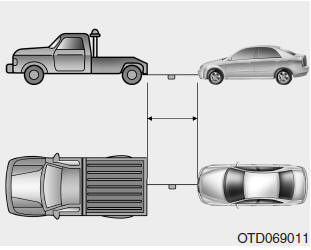

If towing service is not available in an emergency, your vehicle may be temporarily towed using a cable or chain secured to the emergency towing hook under the front/rear of the vehicle. Use extreme caution when towing the vehicle. A driver must be in the vehicle to steer it and operate the brakes.

Towing in this manner may be done only on hard-surfaced roads for a short distance and at low speeds. Also, the wheels, axles, power train, steering and brakes must all be in good condition.


Emergency towing precautions

CAUTION - Automatic transaxle

Removable towing hook (front, if equipped)
1. Open the trunk, and remove the towing hook from the tool case. 2. Remove the hole cover pressing the lower part of the cover on the front bumper. 3. Install the towing hook by turning it clockw ...

Tie-down hook
WARNING - Tie-down hook Do not use the tie-down hooks for towing purposes. These hooks are designed ONLY for transport tie-down. If the tiedown hooks are used for towing, the tie-down hooks or defl ...
