| Components |

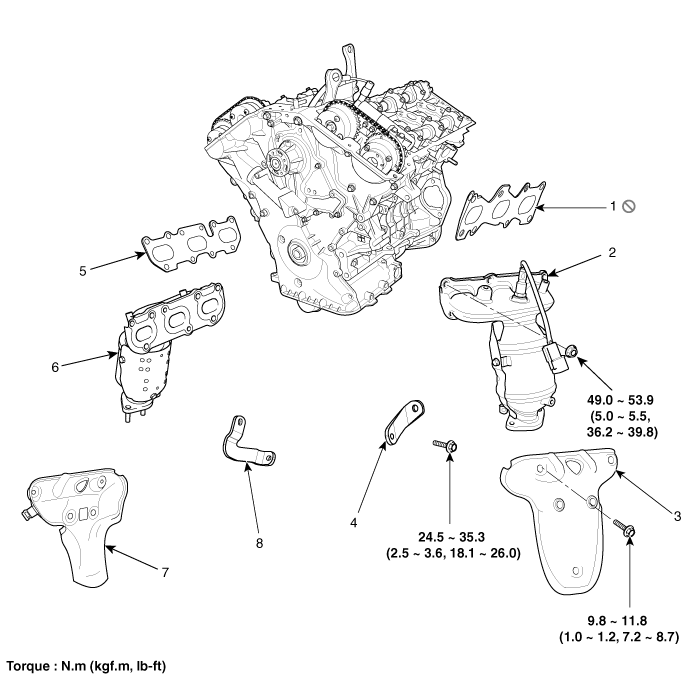

| 1. LH Exhaust manifold gasket 2. LH Exhaust manifold 3. LH Heat protector 4. LH Exhaust manifold stay | 5. RH Exhaust manifold gasket 6. RH Exhaust manifold 7. RH Heat protector 8. RH Exhaust manifold stay |
