Hyundai Azera: Filter replacement
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Owners Manual / Maintenance / Air cleaner / Filter replacement
It must be replaced when necessary, and should not be washed.
You can clean the filter when inspecting the air cleaner element.

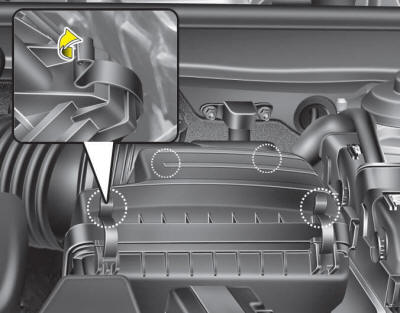

1. Loosen the air cleaner cover attaching clips and open the cover.
2. Wipe the inside of the air cleaner cover and the air box.

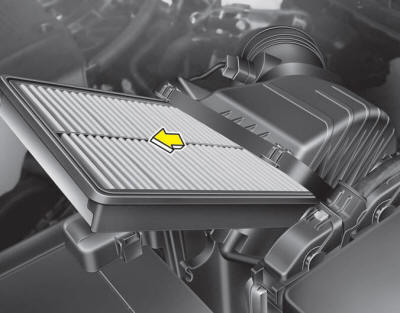

3. Replace the air cleaner filter.
4. Lock the cover with the cover attaching clips.
Replace the filter according to the Maintenance Schedule.
If the vehicle is operated in extremely dusty or sandy areas, replace the element more often than the usual recommended intervals. (Refer to “Maintenance under severe usage conditions” in this section.)
CAUTION - Air filter maintenance
- Do not drive with the air cleaner removed; this will result in excessive engine wear.
- When removing the air cleaner filter, be careful that dust or dirt does not enter the air intake, or damage may result.
- Use a HYUNDAI genuine part. Use of non-genuine parts could damage the air flow sensor.
