Hyundai Azera: Injector Troubleshooting - Engine Control System - Engine Control/Fuel System - Hyundai Azera 2011-2024 Service ManualHyundai Azera: Injector Troubleshooting

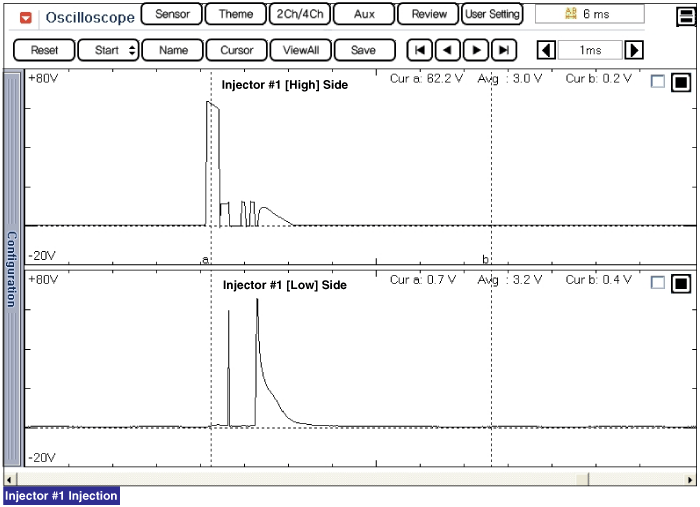

Signal Waveform

Injector Specifications
Specification ItemSpecificationCoil Resistance (?)0.98 ~ 1.14 [20°C(68°F)] ...

Injector Schematic Diagrams
Circuit Diagram ...
