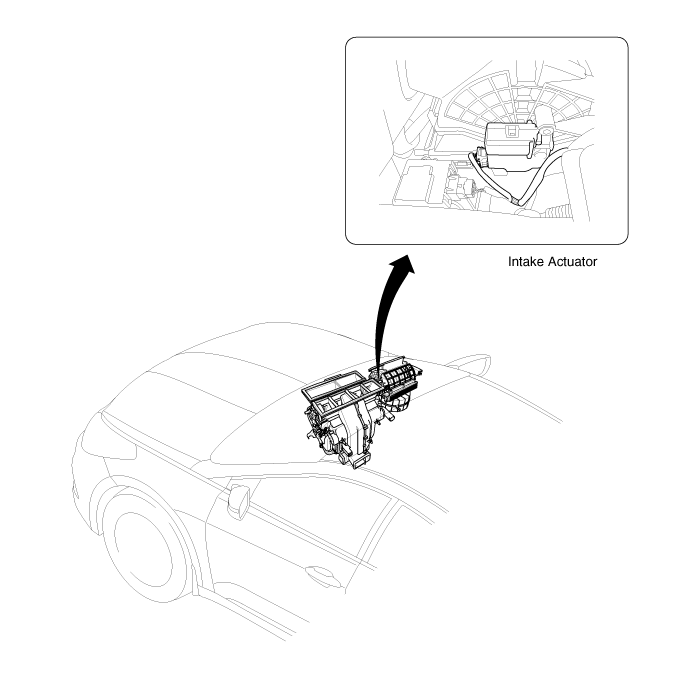

Hyundai Azera: Intake Actuator Components and Components Location

Climate Control Air Filter Repair procedures

Replacement 1. Disconnect the damper (B) from the glove box (A) and then remove the glove box lift (C). 2. Remove the filter cover(A) with pushing the knob. 3. Replace the air filter (B), ...

Intake Actuator Description and Operation

Description 1. The intake actuator is located at the blower unit. 2. It regulates the intake door by signal from control unit. 3. Pressing the intake selection switch will shift between re ...

See also:

EBD(Electronic Brake-force Distribution) Description and Operation
Operation The EBD system (Electronic Brake force Distribution) as a sub-system of the ABS system is to control the maximum braking effectiveness by the rear wheels. It further utilizes the e ...

ICM (Integrated Circuit Module) Relay Box Components and Components Location
Component Input/Output Specification No.ConnectorNo.Connector1 -11 -2 -12 -3Burglar horn13 -4 -14 -5Engine room box(Horn 15A fuse)15GND6IPM(BCM : Burglar alarm h ...

Gauges
Speedometer The speedometer indicates the vehicle speed. The speedometer is calibrated in miles per hour and/or kilometers per hour. Tachometer The tachometer indicates the engine speed in rev ...
