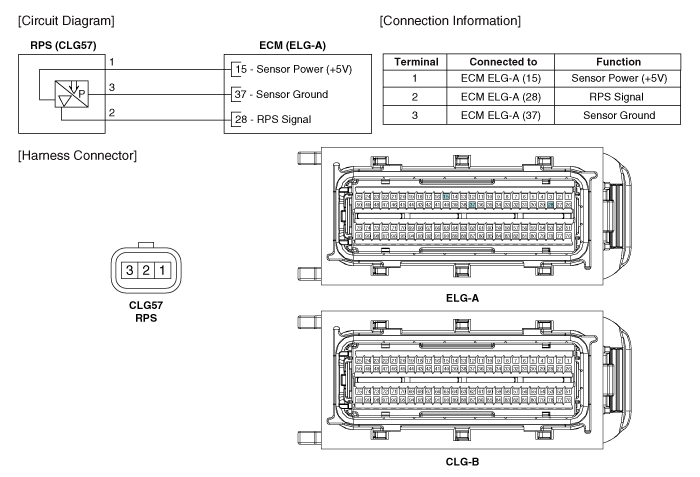

Hyundai Azera: Rail Pressure Sensor (RPS) Schematic Diagrams

Rail Pressure Sensor (RPS) Troubleshooting

Signal Waveform ...

Rail Pressure Sensor (RPS) Repair procedures

Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the RPS at idle and various engine speed. ConditionOutput Voltage (V)Idle Approx. 1.21, ...
