Hyundai Azera: Schematic Diagrams

Immobilizer System

...

Description and Operation

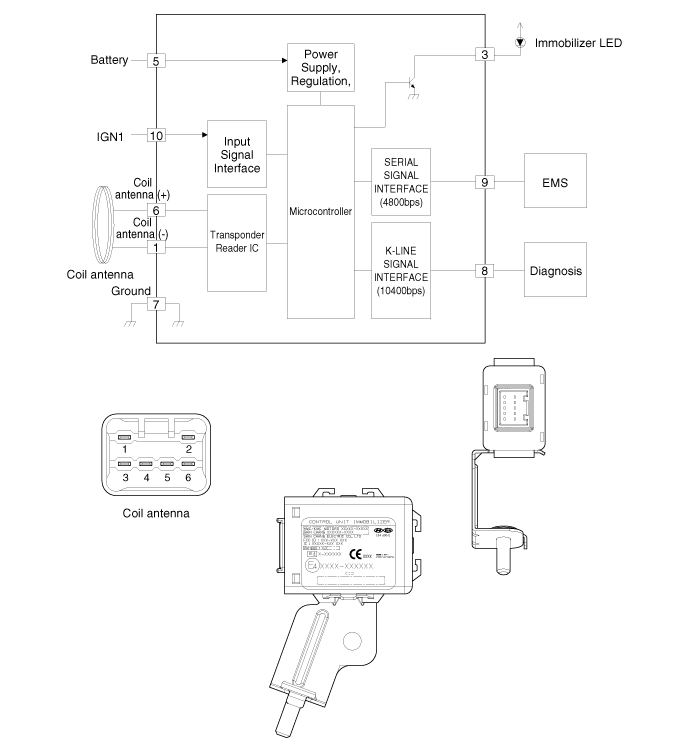

Description The immobilizer system will disable the vehicle unless the proper ignition key is used, in addition to the currently available anti-theft systems such as car alarms, the immobilizer ...

See also:

ICM (Integrated Circuit Module) Relay Box Components and Components Location
Component Input/Output Specification No.ConnectorNo.Connector1 -11 -2 -12 -3Burglar horn13 -4 -14 -5Engine room box(Horn 15A fuse)15GND6IPM(BCM : Burglar alarm h ...
