Hyundai Azera: Schematic Diagrams
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Electrical System / Cruise Control System / Schematic Diagrams
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Electrical System / Cruise Control System / Schematic Diagrams

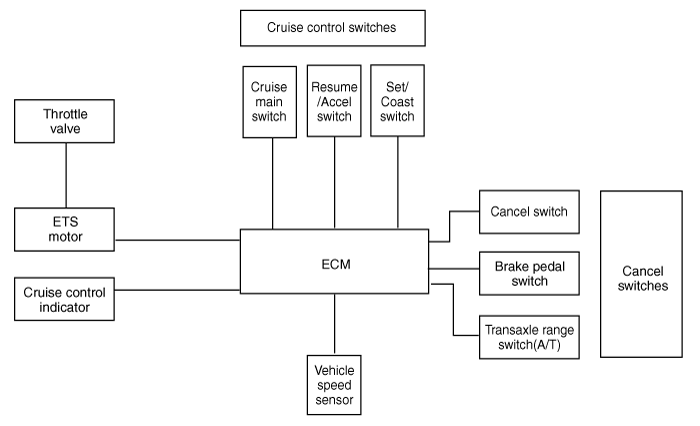

| System Block Diagram |
Component Parts And Function Outline
| Component part | Function |
| Vehicle-speed sensor | Converts vehicle speed to pulse. |
| ECM | Receives signals from sensor and control switches. |
| Cruise control indicator | Illuminate when CRUISE main switch is ON (Built into cluster) |
| Cruise Control switches | ON/OFF switch | Switch for automatic speed control power supply. |
| Resume/Accel switch | Controls automatic speed control functions by Resume/Accel switch (Set/Coast switch) |
| Set/Coast switch | |
| Cancel switches | Cancel switch | Sends cancel signals to ECM. |
| Brake-pedal switch | |
| Transaxle range switch (A/T) | |
| ETS motor | Regulates the throttle valve to the set opening by ECM. |
* ETS : Electronic Throttle System
