Hyundai Azera: Schematic Diagrams
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Engine Electrical System / Smart Cruise Control System / Schematic Diagrams
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Engine Electrical System / Smart Cruise Control System / Schematic Diagrams
| Trouble Symptom Charts |

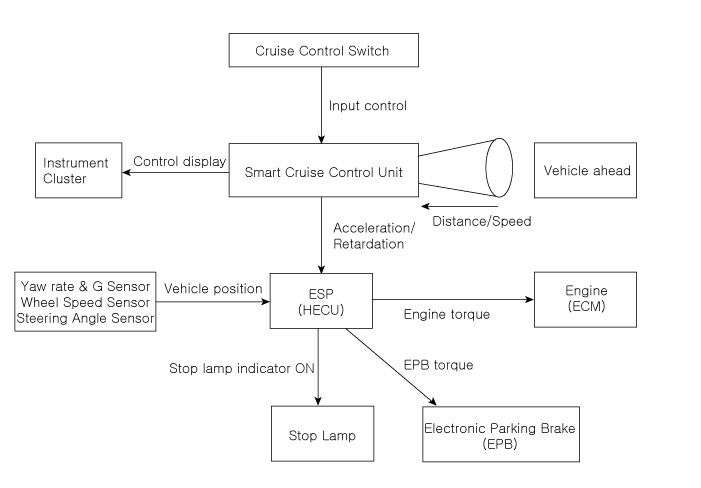

Component Parts And Function Outline
| Component part | Function |
| Cruise Control Switch | Input the set speed and distance to the SCC ECU. |
| Instrument Cluster | Display various information inputted from SCC. |
| Smart Cruise Control Unit | Recognize and track the vehicle ahead. Calculate the target speed and distance Request the acceleration and retardation to ESP |
| ESP (HECU) | Automatic braking and request the engine torque control to the engine (ECM) Request the EPB torque control to the Electronic Parking Brake (EPB) Request the stop lamp indicator ON |
| Engine (ECM) | Control the engine torque |
| Electronic Parking Brake (EPB) | Control the EPB torque |
| Stop lamp | Stop lamp indicator ON |
General Safety Information and Caution
Smart Cruise Control
Be careful when driving the vehicle using the smart cruise control system as follows.
•
The smart cruise control system may have limits to detect dist ...
Description and Operation
Description
The smart cruise control system allows a driver to program
the vehicle to control the speed and following distance detecting the
vehicle ahead without depressing the brake pedal and ...
