Specification
Ignition System
Items
Specification
Ignition coil
Primary resistance
0.75? ± 15 %
Secondary resistance
5.9k? ± 15 %
Spark plugs
Type
SILZKR7B11
Gap
1.0 ~ 1.1mm (0.0394 ~ 0.0433in.)

Starting System
ltems
Specification
Starter
Rated voltage
12 V, 1.7 kW
No. of pinion teeth
10
No-load characteristics
Voltage
11.5 V
Ampere
85A, MAX
Speed
2,550 rpm, MIN

Charging System
Items
Specification
Alternator
Rate voltage
13.5 V, 150A
Speed in use
1,500 ~ 18,000 rpm
Voltage regulator
IC regulator built-in type
Regulator setting voltage
External mode
ECU control
Internal mode
14.0~15.0V
Temperature compensation
External mode
ECU control
Internal mode
 -4 ± 4 mV / °C
Battery

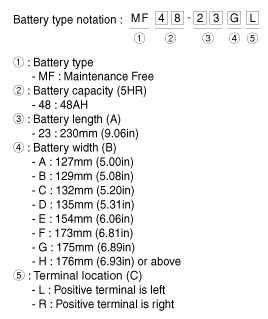

Type
64 - 27 GL
Cold cranking amperage [at -18°C (-0.4°F)]
660 A
Reserve capacity
145 min
Specific gravity [at 25°C (77°F)]
1.280 ± 0.01


•
COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
•
RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C(80.1°F).


Smart Cruise Control System
Items
Specification
Operation speed range
0 ~ 180 km/h (0 ~ 111.8mph)
[0 ~ 30 km/h (0 ~ 18mph), If there is ahead car]
Sensing angle
Horizontal angle
long distance: 20 ± 1°
short distance: 80 ± 5°
Vertical angle
4.5°
Sensing distance
long distsnce: 1 ~ 174m (3 ~ 570ft)
short distance: 1 ~ 50m (3 ~ 164ft)
