Hyundai Azera: SRS components and functions - Air bag - Safety features of your vehicle - Hyundai Azera 2011-2023 Owners ManualHyundai Azera: SRS components and functions

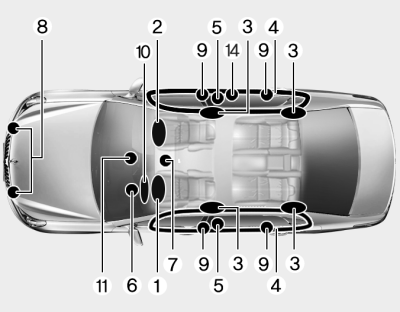

The SRS consists of the following components:


The SRS consists of the following components:

1. Driver's front air bag module
2. Passenger's front air bag module
3. Side impact air bag modules
4. Curtain air bag modules
5. Retractor pre-tensioner assemblies
6. Air bag warning light
7. SRS control module (SRSCM)
8. Front impact sensors
9. Side impact sensors
10. Drivers knee air bag module
11. Passengers front air bag ON/OFF indicator (front passenger's seat only)
12. Occupant classification system (front passengers seat only)
13. Drivers and front passengers seat belt buckle sensors
14. Anchor pretensioner assembly

The SRSCM continually monitors all SRS components while the ignition switch is ON to determine if a crash impact is severe enough to require air bag deployment or pre-tensioner seat belt deployment. The SRS air bag warning light "on the instrument panel will illuminate for about 6 seconds after the ignition switch"
on the instrument panel will illuminate for about 6 seconds after the ignition switch is turned to the ON position, after which the SRS air bag warning light "should go out."
should go out.

If any of the following conditions occurs, this indicates a malfunction of the SRS. Have an authorized HYUNDAI dealer inspect the air bag system immediately.

The front air bag modules are located both in the center of the steering wheel,


The front air bag modules are located both in the center of the steering wheel, in the front passenger's panel above the glove box and/or in the drivers side knee bolster. When the SRSCM detects a sufficiently severe impact to the front of the vehicle, it will automatically deploy the front air bags.

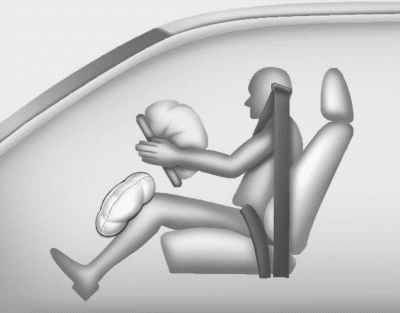

Upon deployment, tear seams molded directly into the pad covers will separate


Upon deployment, tear seams molded directly into the pad covers will separate under pressure from the expansion of the air bags. Further opening of the covers then allows full inflation of the air bags.

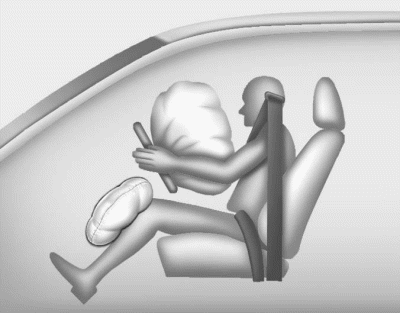

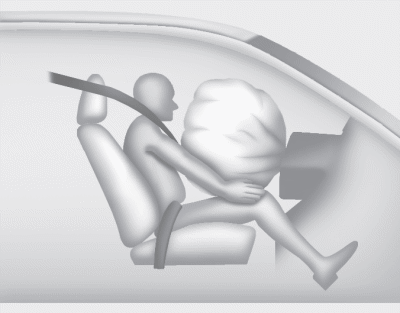

A fully inflated air bag, in combination with a properly worn seat belt, slows


A fully inflated air bag, in combination with a properly worn seat belt, slows the driver's or the passenger's forward motion, reducing the risk of head and chest injury.

After complete inflation, the air bag immediately starts deflating, enabling the driver to maintain forward visibility and the ability to steer and operate other controls.

WARNING - Air bag obstructions


WARNING - Air bag obstructions

Do not install or place any accessories on the steering wheel, instrument panel, or on the front passenger's panel above the glove box in a vehicle Such objects may become dangerous projectiles and cause serious injury if the air bag deploys.

✽ NOTICE

Before you replace a fuse or disconnect a battery terminal, change the ignition switch to the OFF position. Never remove or replace the air bag related fuse(s) when the ignition switch is in the ON position. Failure to heed this warning will cause the SRS air bag warning light to illuminate.
