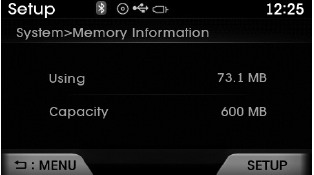

Memory Information
Press the key
Select [System]
Select [Memory Information]
This feature displays information related to system memory.
(1) Using : Displays capacity currently in use
(2) Capacity : Displays total capacity

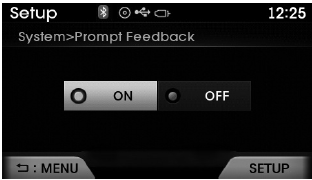

Voice Recognition Mode Setting
Press the key
Select [System]
Select [Prompt Feedback]
This feature is used to select the desired prompt feedback option from Normal and Expert.
(1) ON :
When using voice recognition, provides detailed guidance prompts
(2) OFF :
When using voice recognition, omits some guidance prompts

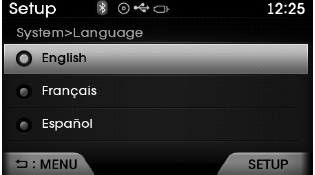

Language
Press the key
Select [System]
Select [Language]
This feature is used to change the system and voice recognition language.
If the language is changed, the system will restart and apply the selected language.
