Hyundai Azera: Telematics Unit (TMU) Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body Electrical System / MTS System / Telematics Unit (TMU) Components and Components Location

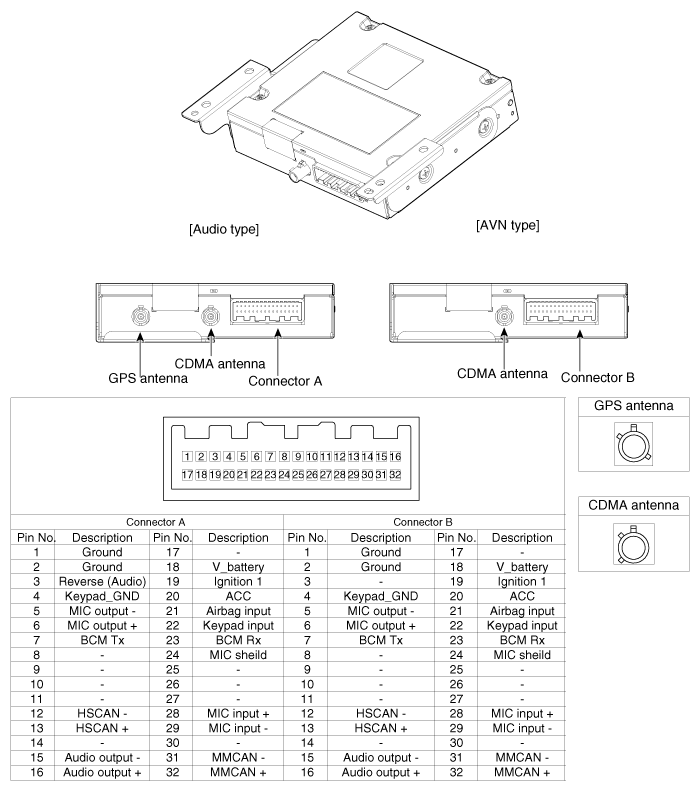

| Component |
Description and Operation
Description
Mobile Telematics System (MTS)
Hyundai motor companies are now faced with the task of
shifting their paradigm from vehicle-centered services to customer
valuecentered services, wit ...
Telematics Unit (TMU) Repair procedures
Removal
AVN Head Unit
•
Take care not to scratch the center fascia panel and related parts.
•
Eject all the disc before removing the AVN head unit to prevent dam ...
