Hyundai Azera: Drive Plate Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Mechanical System / Cylinder Block / Drive Plate Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Mechanical System / Cylinder Block / Drive Plate Components and Components Location

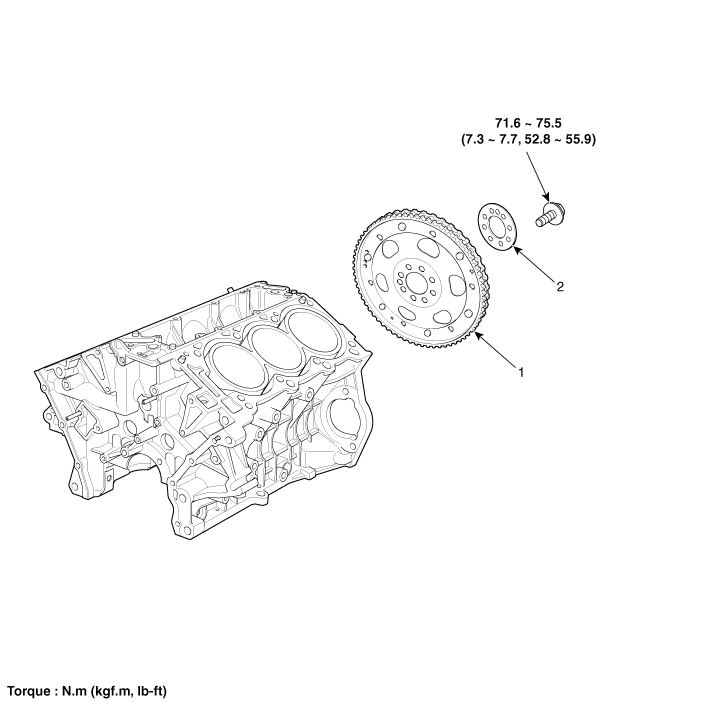

| Components |
| 1. Drive plate 2. Adapter plate |
Water Jacket Seperator Repair procedures
Removal
1.
Remove the LH/RH cylinder head assembly and gasket.
(Refer to Cylinder Head Assembly - "Cylinder Head")
2.
Remove the water jacket seperator (A).
Installation
1.
Install the ...
Drive Plate Repair procedures
Removal and Installation
1.
Remove the automatic transaxle.
(Refer to Automatic Transaxle System - "Automatic Transaxle")
2.
Remove the adapter plate (B) and the drive plate (A).
Tighteni ...
See also:
Water Pipe Repair procedures
Removal and Installation
1.
Remove the delivery pipe and injector assembly.
(Refer to Fuel System - "Delivery Pipe")
2.
Remove the water temperature control assembly.
(Refer to Cooling Sys ...
Vapor hose and fuel filler cap
The vapor hose and fuel filler cap should be inspected at those intervals specified
in the maintenance schedule. Make sure that a new vapor hose or fuel filler cap
is correctly replaced. ...
On-board Refueling Vapor Recovery (ORVR) valve Repair procedures
Removal
1.
Turn the ignition switch OFF, and then remove battery (-) cable.
2.
Remove the fuel tank.
(Refer to Fuel System - "Fuel Tank")
3.
Disconnect the vapor hose (A).
4.
Remove ...
