Hyundai Azera: Air Cleaner Components and Components Location
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Engine Mechanical System / Intake And Exhaust System / Air Cleaner Components and Components Location
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Engine Mechanical System / Intake And Exhaust System / Air Cleaner Components and Components Location
| Components |

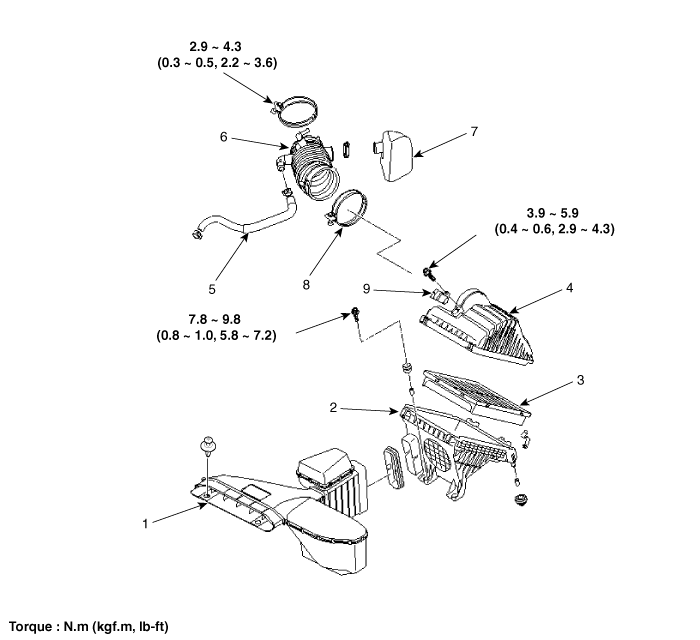

| 1. Air duct 2. Air cleaner lower cover 3. Air cleaner element 4. Air cleaner upper cover | 5. Breather hose 6. Air in take hose 7. Resonator 8. Clamp 9. Barometric pressure sensor |
Air Cleaner Repair procedures
Removal and Installation
1.
Remove the battery.
(Refer to Engine Electrical System - "Battery")
2.
Remove the engine cover.
3.
Remove the air duct (A).
4.
Remove the air cleaner asse ...
