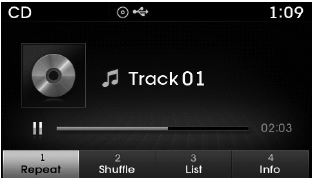

If you press the key, you will
have access to the Repeat, Shuffle, List and Info features.
Repeat
Press the key
Select
Repeat :Repeats the current track.
Shuffle
Press the key
Select
Shuffle :Plays tracks in random order
✽ NOTICE
The ,
keys are shortcut keys to set the Repeat and Shuffle features.

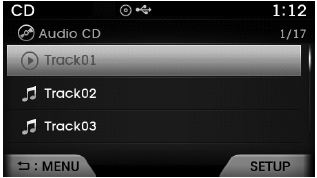

List
Press the key
Select
Press the ,
keys to search for the desired track
and press the key to select.

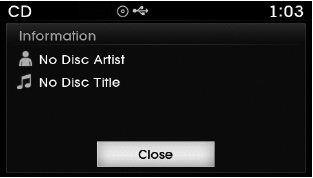

Info
Press the key
Select
Details for the currently playing track are displayed.
