Hyundai Azera: Canister Close Valve (CCV) Schematic Diagrams
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Control/Fuel System / Engine Control System / Canister Close Valve (CCV) Schematic Diagrams
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Control/Fuel System / Engine Control System / Canister Close Valve (CCV) Schematic Diagrams

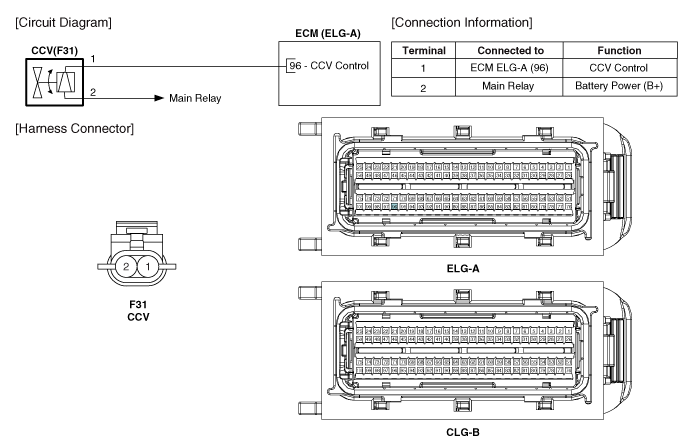

| Circuit Diagram |
Canister Close Valve (CCV) Specifications
Specification
ItemSpecificationCoil Resistance (?)19.8 ~ 21.8 (20°C)
...
Canister Close Valve (CCV) Repair procedures
Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the CCV connector.
3.
Measure resistance between the CCV terminal 1 and 2.
4.
Check that the resistance is within the specific ...
