| Smart Key |
Smart Key Code Saving
| 1. |
Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.
|
| 2. |

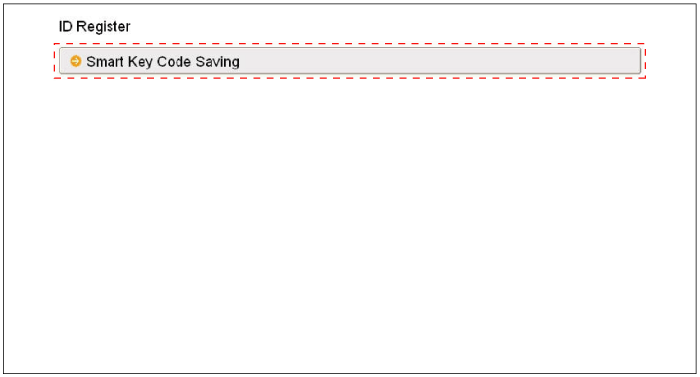

Select the vehicle model and then do "Smart key code saving".
|
| 3. |

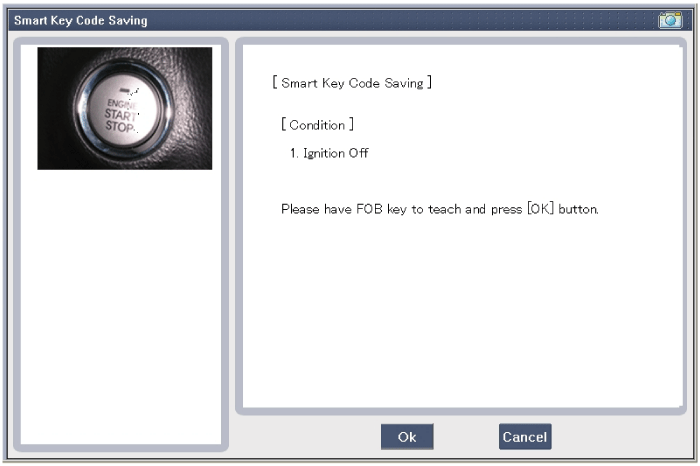

After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.
|
| 4. |
After pushing the SSB with the teaching key, press "OK" button. |
| 5. |

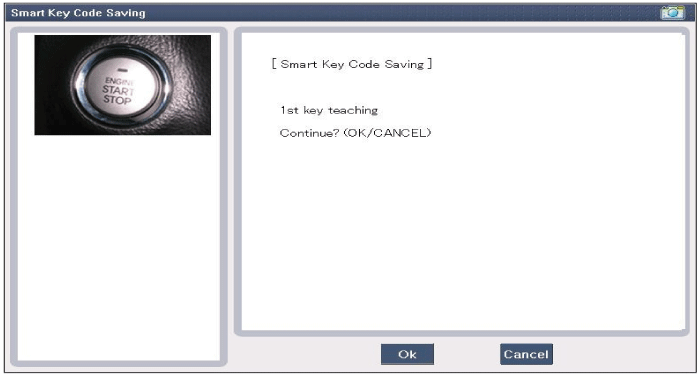

Input the "Pin code" for first key teaching.
|
| 6. |

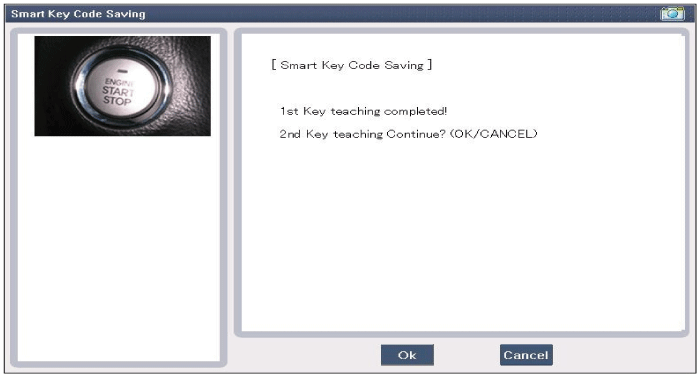

Confirm the message "First key teaching completed".
|
| 7. |

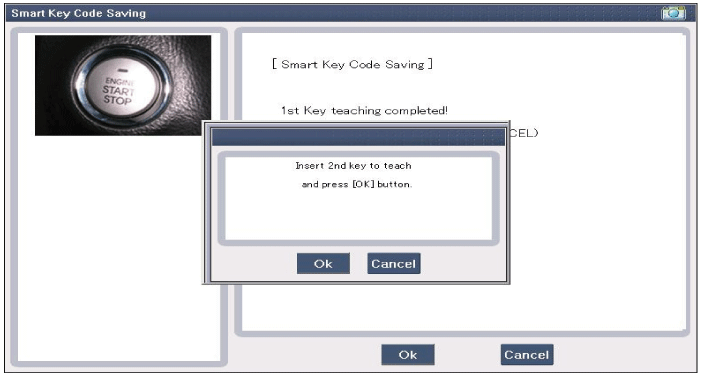

Input the "Pin code" for second key teaching.
|
| 8. |
Confirm the message "Second key teaching completed".
|
| 9. |

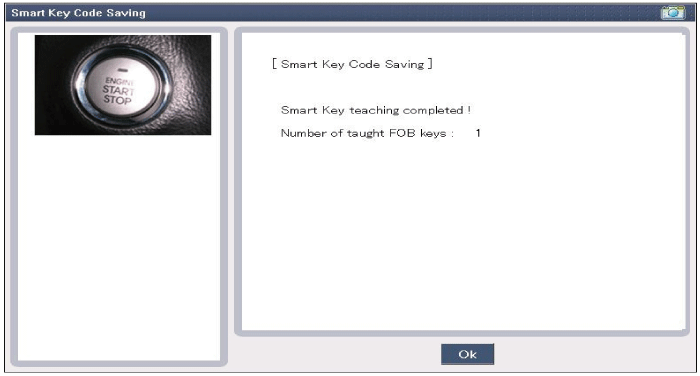

Then the screen will be shown as below when key teaching process is completed. |
