Hyundai Azera: Basic Mode Screen
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Owners Manual / Features of your vehicle / My music mode / Basic Mode Screen

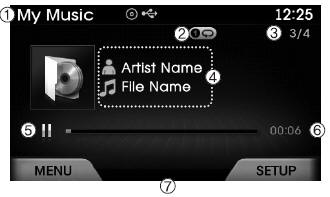

(1) Mode Displays currently operating mode.
(2) Operation State From Repeat / Shuffle / Scan, displays the currently operating function.
(3) File Index Displays the current file/total number of files.
(4) File Info Displays information about the current file.
(5) Play State Displays the play/pause state.
(6) Play Time Displays the current play time.
(7) MENU Displays the My Music Menu

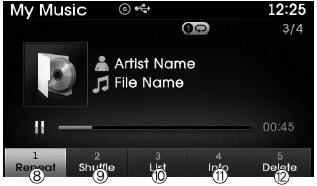

(8) Repeat Turns the Repeat feature on/off.
(9) Shuffle Turns the Shuffle feature on/off.
(10) List Moves to the list screen.
(11) Info Displays detailed information for the current file.
(12) Delete Deletes the current file.
My music mode
...
Using My Music Mode
Playing/Pausing My Music Files
While playing, press the key to
pause and press again to play.
✽ NOTICE
If there are no files saved within My Music, the
button will be disabled.
Changi ...
