Hyundai Azera: Using My Music Mode

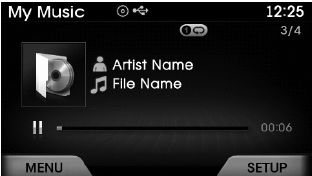

Playing/Pausing My Music Files

While playing, press the
key to
pause and press again to play.
✽ NOTICE
If there are no files saved within My Music, the
button will be disabled.
Changing Files
Press the
keys to select the previous
or next file.
✽ NOTICE

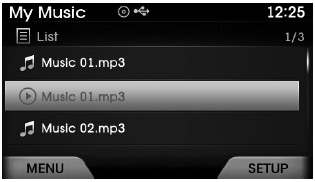

Selecting from the List Press the
,
keys to search and select desired
files.

Once you find the desired file, press the
key to start playing.
Rewinding / Fast-forwarding Files
While playing, press and hold the
keys (over 0.8 seconds) to rewind
or fast-forward the current file.
Scan
Press the
key to play the first
10 seconds of each file.
Basic Mode Screen
