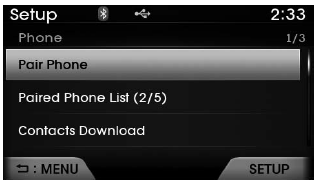

Pairing a New Device
Press the key
Select [Phone]
Select [Pair Phone]
Bluetooth® Wireless Technology devices can be paired with the audio system.
For more information, refer to the “Pairing through Phone Setup” section within Bluetooth® Wireless Technology.

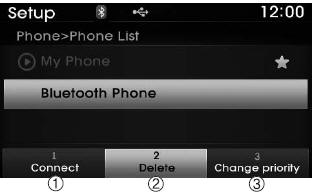

Viewing Paired Phone List
Press the key
Select [Phone]
Select [Paired Phone List]
This feature is used to view mobile phones that have been paired with the audio system. Upon selecting a paired phone, the setup menu is displayed.
For more information, refer to the “Setting Bluetooth® Wireless Technology Connection” section within Bluetooth® Wireless Technology.
1) Connect/Disconnect Phone : Connect/ disconnects currently selected phone
2) Delete : Deletes the currently selected phone
3) Change Priority : Sets currently selected phone to highest connection priority
