1. |
Disconnect the negative (-) battery terminal. |
2. |
Remove the crash pad lower panel.
|
3. |
Remove the Reinforcing panel after loosening the mounting bolt and nut.
|
4. |
Disconnect the IPM connectors, loosening the nuts (4EA).
|
5. |
Disconnect the rear connector, and then remove the IPM. |
2. |
Install the reinforcing panel. |
3. |
Install the crash pad lower panel. |
4. |
Disconnect the negative (-) battery terminal. |
1. |
It will be able to diagnose defects of IPM with GDS quickly.
GDS can operates actuator forcefully, input/output value monitoring and
self diagnosis. |
2. |
Select model and "IPM". |
3. |
Select the module to check. |
4. |

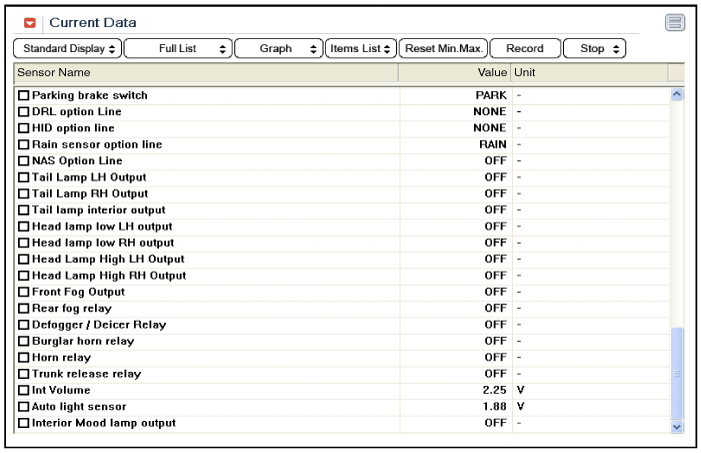

Select "Input/output monitoring", if you will check current
data of body network system. It provides input/output status of each
module.
|
5. |

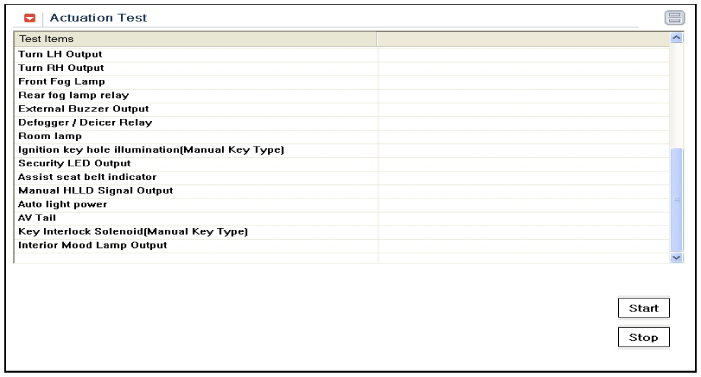

If you will check each module data operation forcefully, select "Actuation test".
|
6. |
To check the DTC of the each module, select "DIAGNOSTIC TROUBLE CODES".
|
7. |

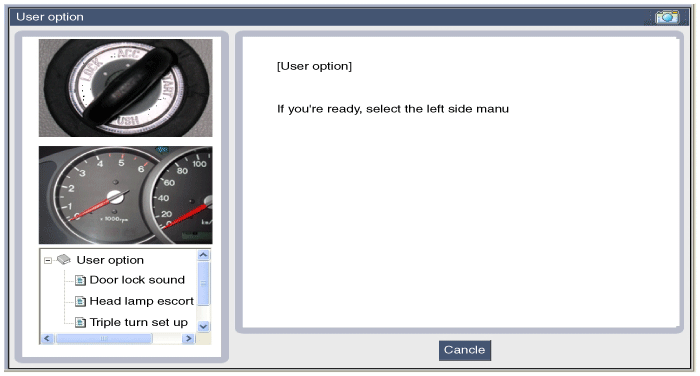

If you want to change user option, select “user option”.
|
Description
Communication network diagram
AbbreviationExplanationC_CANChassis Controller Area NetworkB_CANBody Controller Area NetworkMM_CANMulti media Controller Area NetworkSMKSmart Key ECUDDM ...
